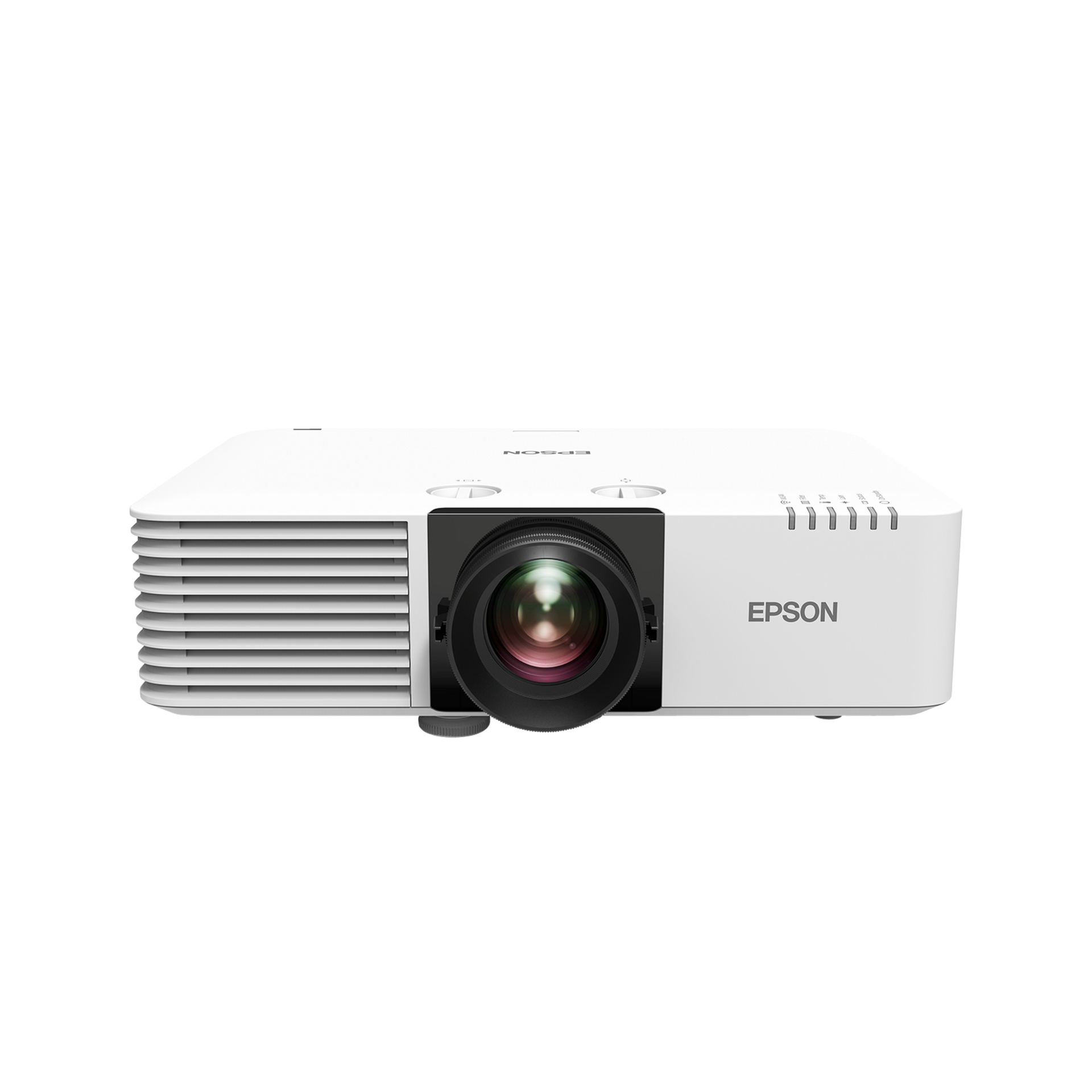

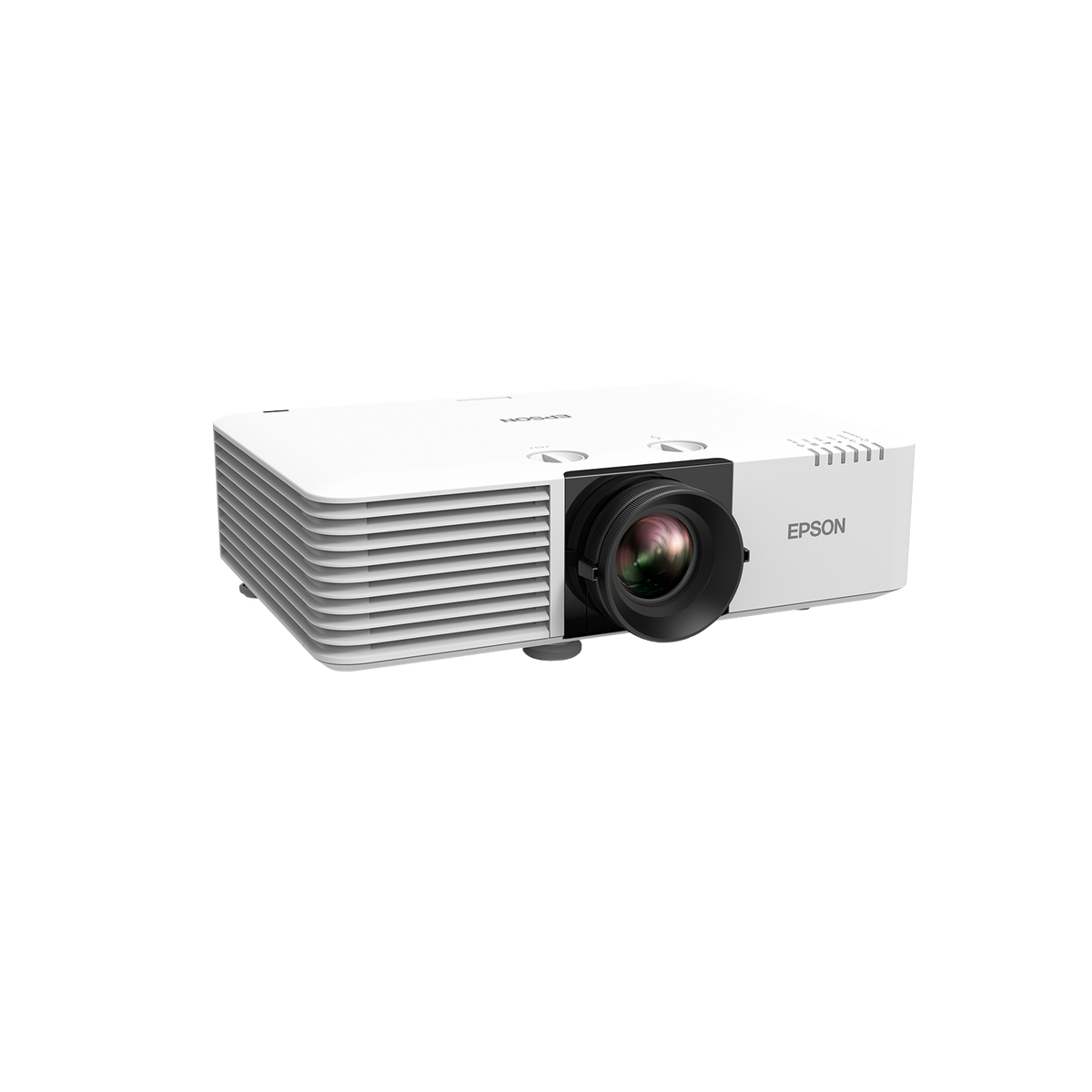

Epson - EB-L570U
SKU: EP0004
Epson - EB-L570U
Incredible picture quality
Providing higher quality content output, more engaging and impactful displays even in brightly-lit environments, the EB-L570U offers impressive 5,200-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L570U is also a scalable display from 50 to 500-inches.
Superior connectivity
This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L570U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.
Effortless and flexible installation
360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features.
Peace of mind and long-lasting durability
Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).
Technology
Projection System: 3LCD Technology
LCD Panel: 0.67 inch with C2 Fine
Color Light Output: 5,200 Lumen - 3,640 Lumen (economy) (In accordance with IDMS15.4)
White Light Output: 5,200 Lumen (In accordance with ISO 21118:2020)
Resolution: WUXGA
Resolution Enhancement: 4K enhancement
Aspect Ratio: 16:10
On-Screen Pixel Count: 4,608,000 (1920 x 1200 x 2)
Contrast Ratio: Over 5,000,000:1
Light Source: Laser
Laser Light Source Durability: 20,000 hours (High), 30,000 hours (Eco)
Keystone Correction: Manual vertical: ± 30°, Manual horizontal: ± 30°
Colour Video Processing: 10 Bits
Colour Reproduction: Up to 1.07 billion colours
HDR Support: HDR10
Optical
Throw Ratio: 1.35 - 2.20:1
Zoom: Manual, Factor: 1 - 1.6
Lens: Optical
Lens Shift: Manual - Vertical ± 50%, Horizontal ± 20%
Screen Size: 50 inches - 500 inches
Projection Distance Wide: 1.4 m - 14.8 m
Projection Distance Tele: 2.4 m - 23.8 m
Projection Distance Wide/Tele: 1.44 m - 23.84 m
Projection Lens F Number: 1.5 - 1.7
Projection Lens Focal Length: 20 mm - 31.8 mm
Projection Lens Focus: Manual
Connectivity

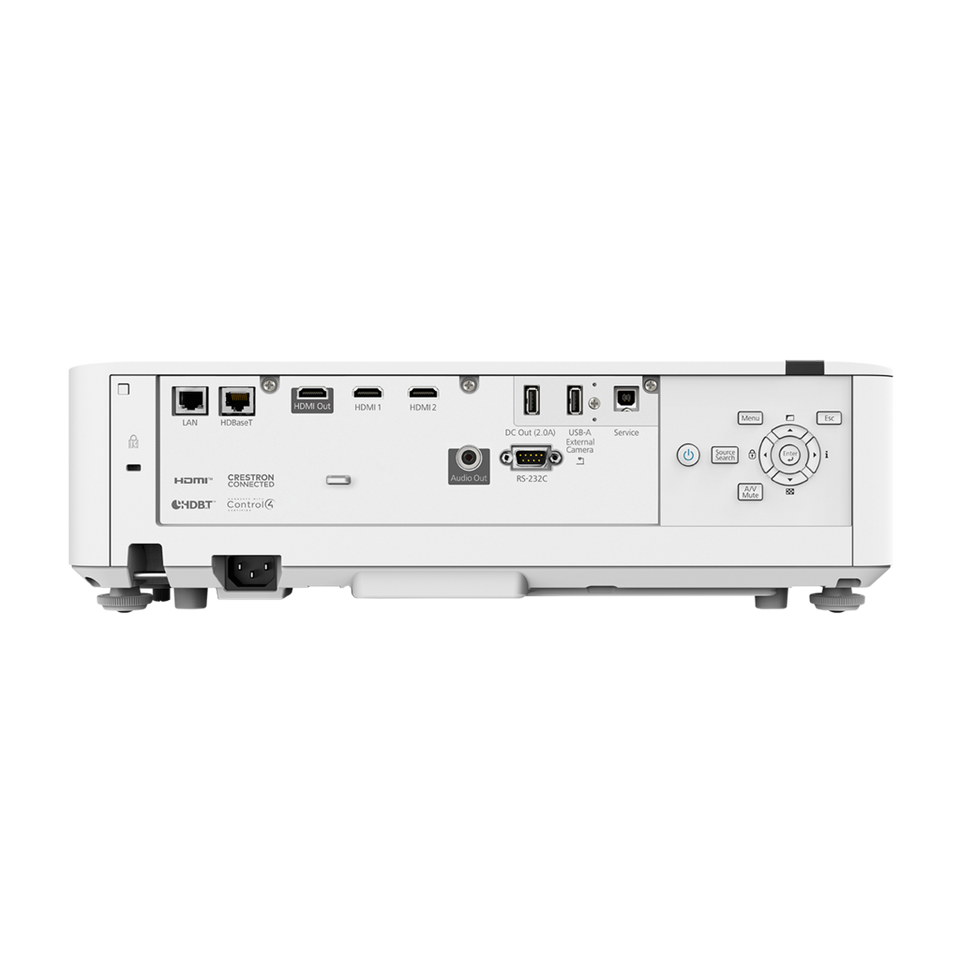

Interfaces:
USB 2.0-A
USB 2.0 Type B (Service Only)
RS-232C
HDMI in (2x)
HDMI out
HDBaseT
Jack plug out
Ethernet interface (100 Base-TX / 10 Base-T)
Epson iProjection App: Ad-Hoc / Infrastructure
Network Protocol:
HTTPS
IPv6
SNMP
PJLink
Advanced Features
Security:
Kensington lock
Padlock
Security cable hole
Wireless LAN unit lock
Password protection
2D Colour Modes:
Dynamic
Natural
Cinema
Presentation
DICOM SIM
Other Features:
21:9 aspect ratio support
4K enhancement
A/V mute
Arc Correction
Auto source search
Built-in speaker
CEC compatible
Direct Power on/off
Document Camera Compatible
Edge Blending
PC Free
Super resolution
Ultra-wide display (16:6)
iProjection App
Video Colour Modes:
Cinema
Dynamic
Natural
Presentation
DICOM SIM
Multi Projection
BT709
Projector Control:
Crestron
Crestron Integrated Partner
Extron IP Link
Extron XTP
AMX Device Discovery
Control4 Simple Device Discovery Protocol
General
Power Consumption:
201 Watt (Normal On-Mode)
177 Watt (Eco On-Mode)
260 Watt (Normal Peak-mode)
199 Watt (Eco Peak-Mode)
0.5 Watt (Energy saving standby)
Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 440 x 304 x 122 mm (Width x Depth x Height)
Product Weight: 8.3 kg
Noise Level:
Normal: 31 dB (A)
Economy: 23 dB (A)
Supported Temperature: Storage: -10°C - 60°C
Supported Humidity: Operation: 20% - 80%, Storage: 10% - 90%
Included Software: Epson Projector Management
Options:
Air filter
Ceiling mount
Connection and control box
Document camera
External Speaker
Safety wire set
Visualiser camera
WP System - ELPWP20
Loudspeaker: 10 Watt
Room Type / Application:
Boardroom
Large Meeting Room / Auditorium
Meeting Room / Classroom
Projection Mapping
Signage / Retail
Visitor Attraction
Positioning:
Ceiling Mounted
Desktop
Colour: White
TCO Certified:
For further information, visit TCO Certified
| Brand | Epson |
|---|
