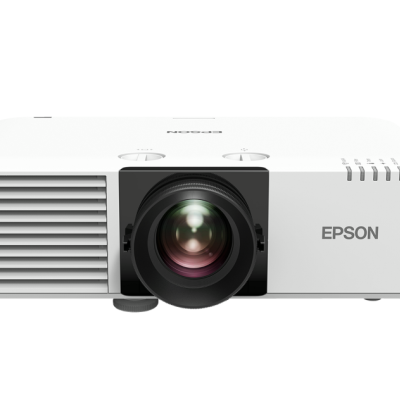

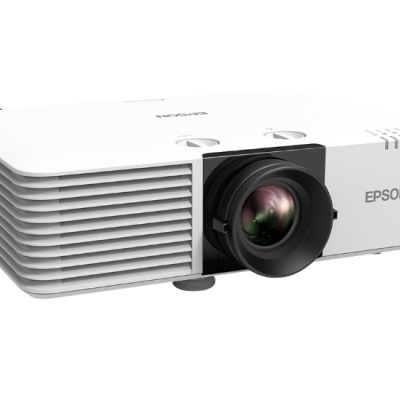

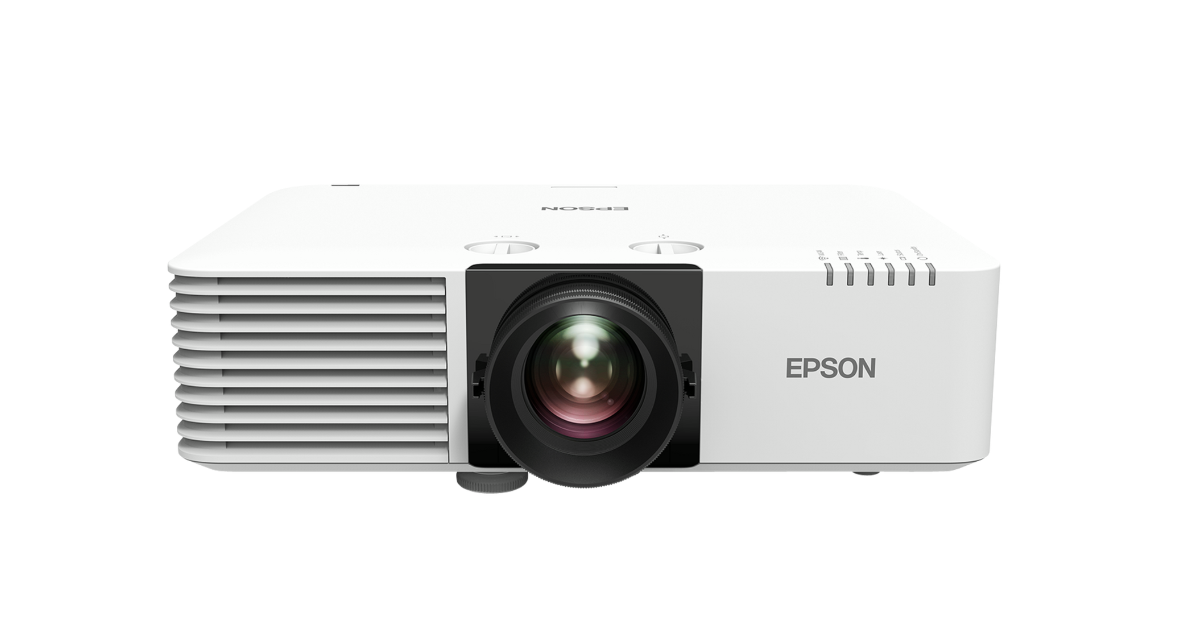

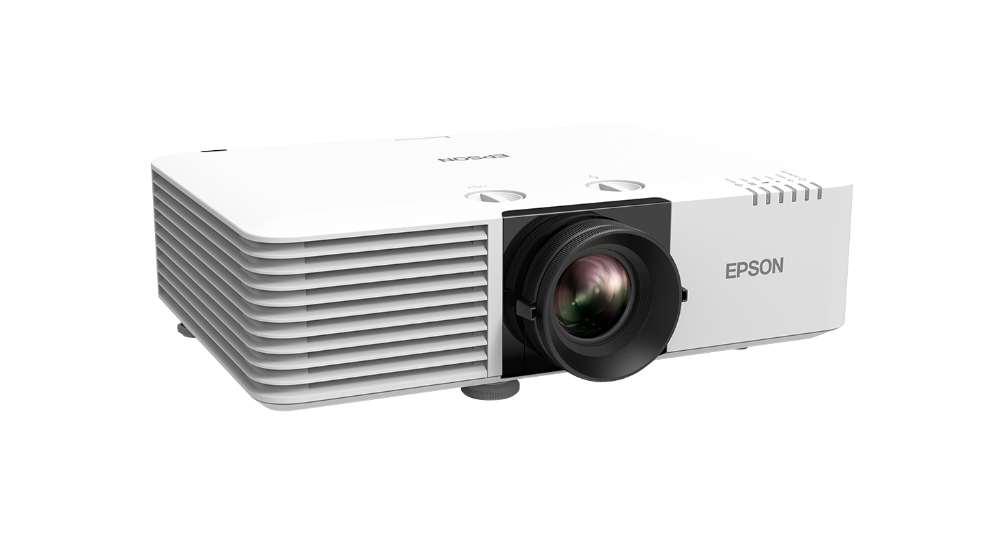

Epson - EB-L770U


Outstanding, bright and clear
Providing higher quality image, more engaging and impactful displays even in brightly-lit environments, the EB-L770U offers impressive 7,000-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L770U is capable to display from 50 to 500-inches, without any reduction in clarity or stunning detail.

Superior connectivity
This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L770U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.

Effortless and flexible installation
360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features. Also available in black.

Peace of mind and long-lasting durability
Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).

Technology

  • Projection System: 3LCD Technology
  • LCD Panel: 0.67 inch with C2 Fine


  • Color Light Output: 7,000 Lumen - 4,900 Lumen (economy) (In accordance with IDMS15.4)
  • White Light Output: 7,000 Lumen (In accordance with ISO 21118:2020)
  • Resolution: WUXGA
  • Resolution Enhancement: 4K enhancement
  • Aspect Ratio: 16:10
  • On-Screen Pixel Count: 4,608,000 (1920 x 1200 x 2)
  • Contrast Ratio: Over 5,000,000:1
  • Light Source: Laser
  • Laser Light Source Durability: 20,000 hours (High), 30,000 hours (Eco)
  • Keystone Correction: Manual vertical: ± 30°, Manual horizontal: ± 30°
  • Colour Video Processing: 10 Bits
  • Colour Reproduction: Up to 1.07 billion colours
  • HDR Support: HDR10

Optical

  • Throw Ratio: 1.35 - 2.20:1
  • Zoom: Manual, Factor: 1 - 1.6
  • Lens: Optical
  • Lens Shift: Manual - Vertical ± 50%, Horizontal ± 20%
  • Screen Size: 50 inches - 500 inches
  • Projection Lens F Number: 1.5 - 1.7
  • Projection Lens Focal Length: 20 mm - 31.8 mm
  • Projection Lens Focus: Manual

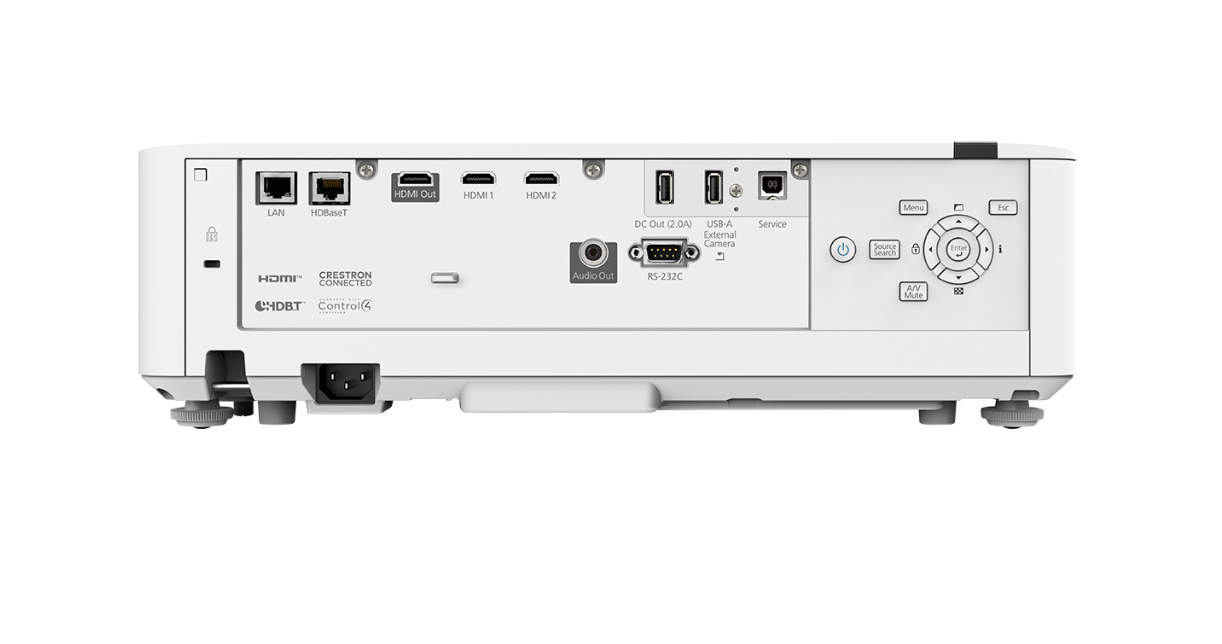

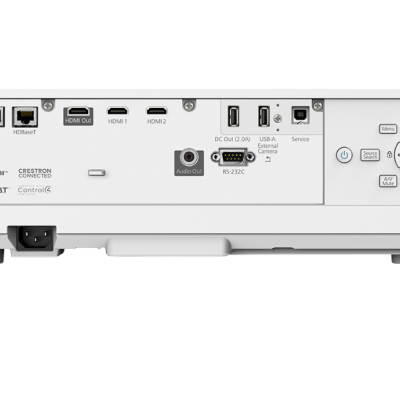

Connectivity

  • Interfaces:
    • USB 2.0-A
    • USB 2.0 Type B (Service Only)
    • RS-232C
    • HDMI in (2x)
    • HDMI out
    • HDBaseT
    • Jack plug out
    • Ethernet interface (100 Base-TX / 10 Base-T)
    • Epson iProjection App: Ad-Hoc / Infrastructure
  • Network Protocol:
    • HTTPS
    • IPv6
    • SNMP
    • PJLink

Advanced Features

  • Security:
    • Kensington lock
    • Padlock
    • Security cable hole
    • Wireless LAN unit lock
    • Password protection
  • 2D Colour Modes:
    • Dynamic
    • Natural
    • Cinema
    • Presentation
    • DICOM SIM
  • Other Features:
    • 21:9 aspect ratio support
    • 4K enhancement
    • A/V mute
    • Arc Correction
    • Auto source search
    • Built-in speaker
    • CEC compatible
    • Direct Power on/off
    • Document Camera Compatible
    • Edge Blending
    • PC Free
    • Super resolution
    • Ultra-wide display (16:6)
    • iProjection App
  • Video Colour Modes:
    • Cinema
    • Dynamic
    • Natural
    • Presentation
    • DICOM SIM
    • Multi Projection
    • BT709
  • Projector Control:
    • Crestron
    • Crestron Integrated Partner
    • Extron IP Link
    • Extron XTP
    • AMX Device Discovery
    • Control4 Simple Device Discovery Protocol

General

  • Power Consumption:
    • 300 Watt (Normal On-Mode)
    • 209 Watt (Eco On-Mode)
    • 366 Watt (Normal Peak-mode)
    • 277 Watt (Eco Peak-Mode)
    • 0.5 Watt (Energy saving standby)
  • Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
  • Product Dimensions: 440 x 304 x 122 mm (Width x Depth x Height)
  • Product Weight: 8.5 kg
  • Noise Level:
    • Normal: 38 dB (A)
    • Economy: 27 dB (A)
  • Supported Temperature: Storage: -10°C - 60°C
  • Supported Humidity: Operation: 20% - 80%, Storage: 10% - 90%
  • Included Software: Epson Projector Management
  • Options:
    • Air filter
    • Ceiling mount
    • Connection and control box
    • Document camera
    • External Speaker
    • Safety wire set
    • Visualiser camera
    • WP System - ELPWP20
  • Loudspeaker: 10 Watt
  • Room Type / Application:
    • Boardroom
    • Large Meeting Room / Auditorium
    • Meeting Room / Classroom
    • Projection Mapping
    • Signage / Retail
  • Visitor Attraction
  • Positioning:
    • Ceiling Mounted
    • Desktop
  • Colour: White

Other

  • Warranty: 36 months Carry-in
Brand Epson
