Epson - EB-L775U
SKU: EP0007
Epson - EB-L775U
Bright, cost-effective display solutions
Providing higher quality image, more engaging and impactful displays even in brightly-lit environments, the EB-L775U offers impressive 7,000-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L775U is capable to display from 50 to 500-inches, without any reduction in clarity or stunning detail.
Superior connectivity
This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L775U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.
Effortless and flexible installation
360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features. Also available in white.
Peace of mind and long-lasting durability
Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).
Technology
Projection System: 3LCD Technology
LCD Panel: 0.67 inch with C2 Fine
Color Light Output: 7,000 Lumen - 4,900 Lumen (economy) (In accordance with IDMS15.4)
White Light Output: 7,000 Lumen (In accordance with ISO 21118:2020)
Resolution: WUXGA
Resolution Enhancement: 4K enhancement
Aspect Ratio: 16:10
On-Screen Pixel Count: 4,608,000 (1920 x 1200 x 2)
Contrast Ratio: Over 5,000,000:1
Light Source: Laser
Laser Light Source Durability: 20,000 hours (High), 30,000 hours (Eco)
Keystone Correction: Manual vertical: ± 30°, Manual horizontal: ± 30°
Colour Video Processing: 10 Bits
Colour Reproduction: Up to 1.07 billion colours
HDR Support: HDR10
Optical
Throw Ratio: 1.35 - 2.20:1
Zoom: Manual, Factor: 1 - 1.6
Lens: Optical
Lens Shift: Manual - Vertical ± 50%, Horizontal ± 20%
Screen Size: 50 inches - 500 inches
Projection Lens F Number: 1.5 - 1.7
Projection Lens Focal Length: 20 mm - 31.8 mm
Projection Lens Focus: Manual
Connectivity

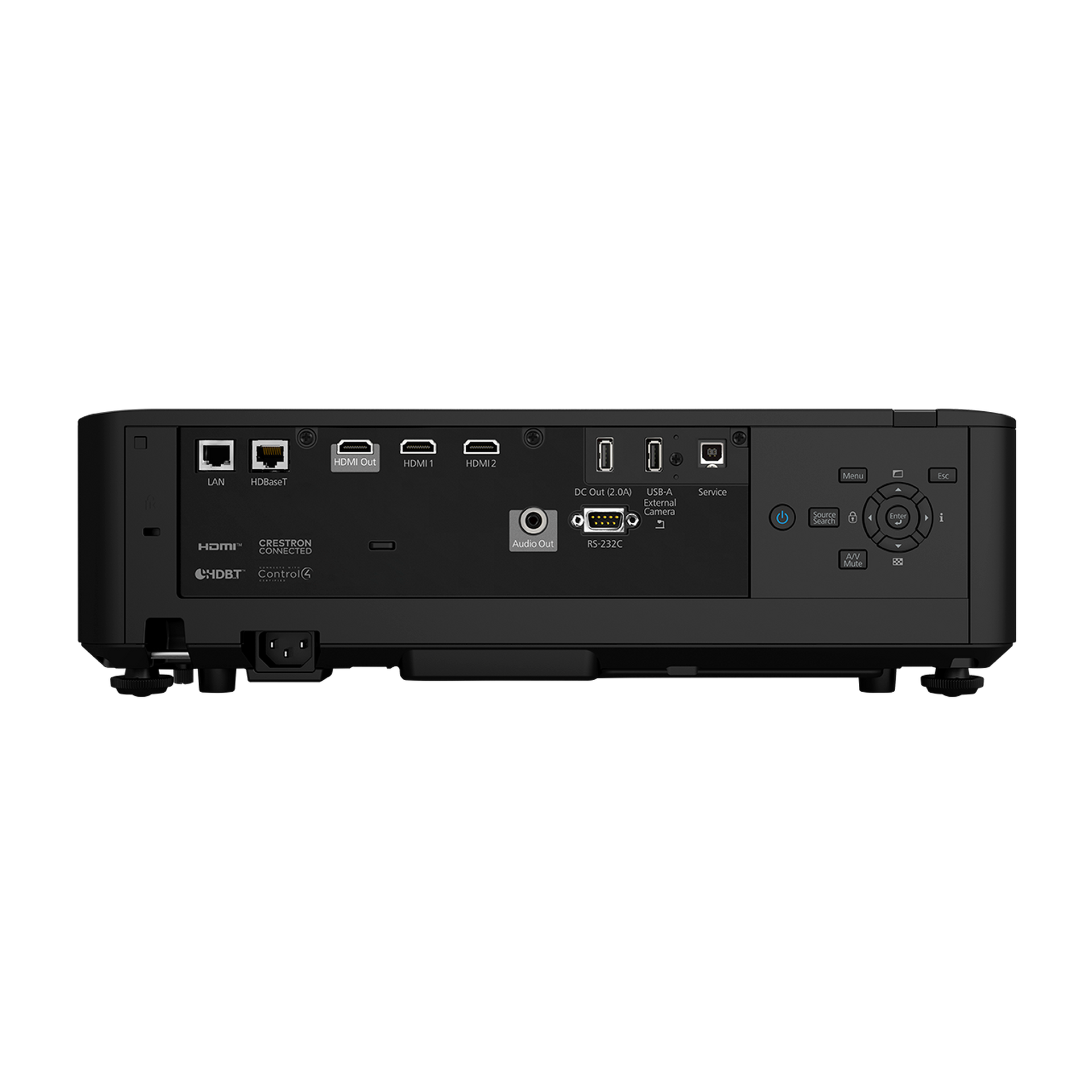

Interfaces:
USB 2.0-A
USB 2.0 Type B (Service Only)
RS-232C
HDMI in (2x)
HDMI out
HDBaseT
Jack plug out
Ethernet interface (100 Base-TX / 10 Base-T)
Epson iProjection App: Ad-Hoc / Infrastructure
Network Protocol:
HTTPS
IPv6
SNMP
PJLink
Advanced Features
Security:
Kensington lock
Padlock
Security cable hole
Wireless LAN unit lock
Password protection
2D Colour Modes:
Dynamic
Natural
Cinema
Presentation
DICOM SIM
Other Features:
21:9 aspect ratio support
4K enhancement
A/V mute
Arc Correction
Auto source search
Built-in speaker
CEC compatible
Direct Power on/off
Document Camera Compatible
Edge Blending
PC Free
Super resolution
Ultra-wide display (16:6)
iProjection App
Video Colour Modes:
Cinema
Dynamic
Natural
Presentation
DICOM SIM
Multi Projection
BT709
Projector Control:
Crestron
Crestron Integrated Partner
Extron IP Link
Extron XTP
AMX Device Discovery
Control4 Simple Device Discovery Protocol
General
Power Consumption:
300 Watt (Normal On-Mode)
209 Watt (Eco On-Mode)
366 Watt (Normal Peak-mode)
277 Watt (Eco Peak-Mode)
0.5 Watt (Energy saving standby)
Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 440 x 304 x 122 mm (Width x Depth x Height)
Product Weight: 8.5 kg
Noise Level:
Normal: 38 dB (A)
Economy: 27 dB (A)
Supported Temperature: Storage: -10°C - 60°C
Supported Humidity: Operation: 20% - 80%, Storage: 10% - 90%
Included Software: Epson Projector Management
Options:
Air filter
Ceiling mount
Connection and control box
Document camera
External Speaker
Safety wire set
Visualiser camera
WP System - ELPWP20
Loudspeaker: 10 Watt
Room Type / Application:
Boardroom
Large Meeting Room / Auditorium
Meeting Room / Classroom
Projection Mapping
Signage / Retail
Visitor Attraction
Positioning:
Ceiling Mounted
Desktop
Colour: White
TCO Certified:
For further information, visit TCO Certified
| Brand | Epson |
|---|
