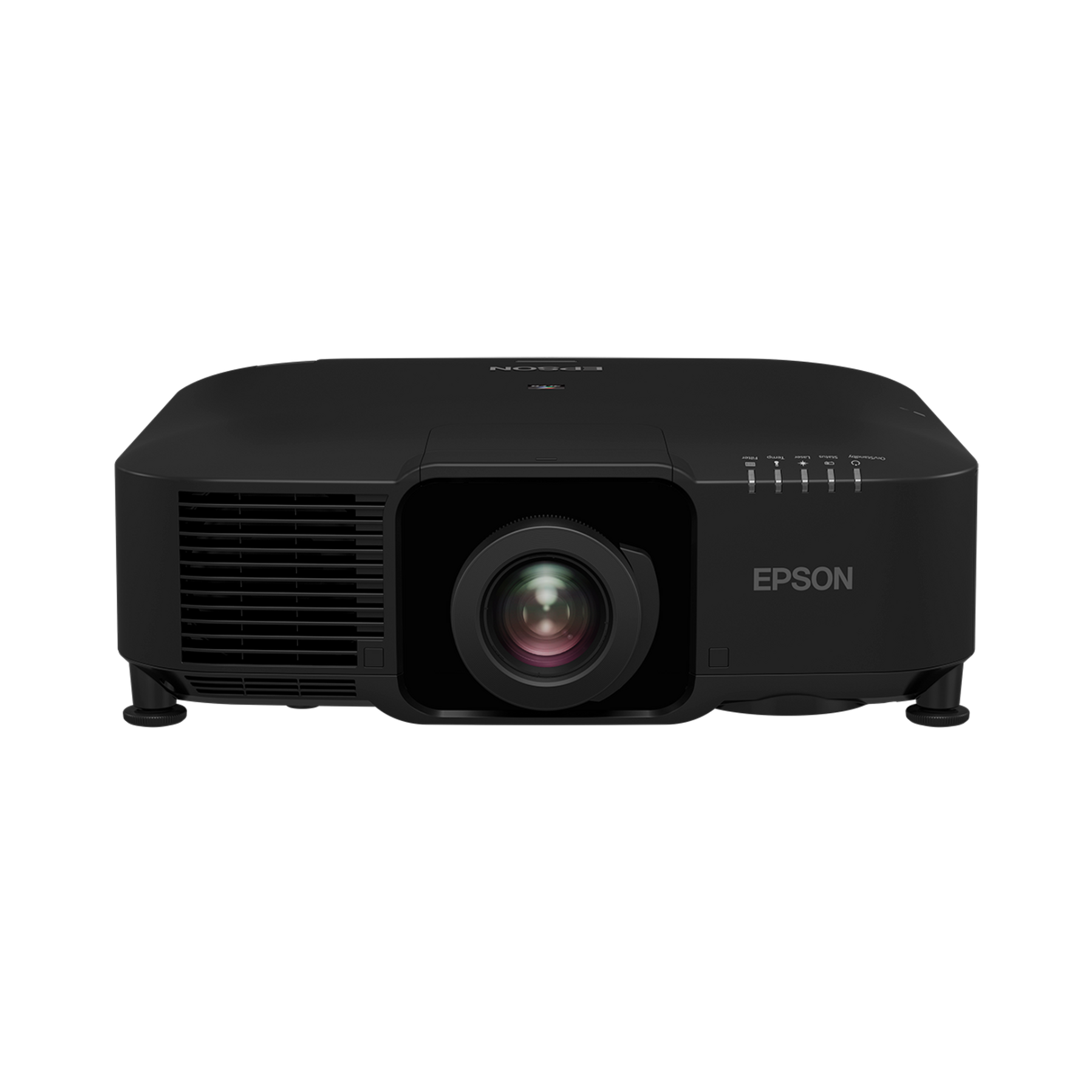

Epson - EB-PQ2010B
SKU: EP0015
Epson - EB-PQ2010B
The EB-PQ2010W large venue 4K laser projector features the latest Epson® technology—pioneering an unprecedented level of performance. The world’s smallest and lightest 10,000-lumen 4K projector, the energy efficient EB-PQ2010W produces captivating visuals in extraordinary detail. Leveraging our 4K Crystal Motion technology, thermo-control panel and double micro-lens array, the EB-PQ2010W delivers stunning 4K resolution on-screen. With a high native contrast ratio and 3-chip 3LCD technology, you will enjoy a realistic display enriched with vibrant colors and deep blacks.

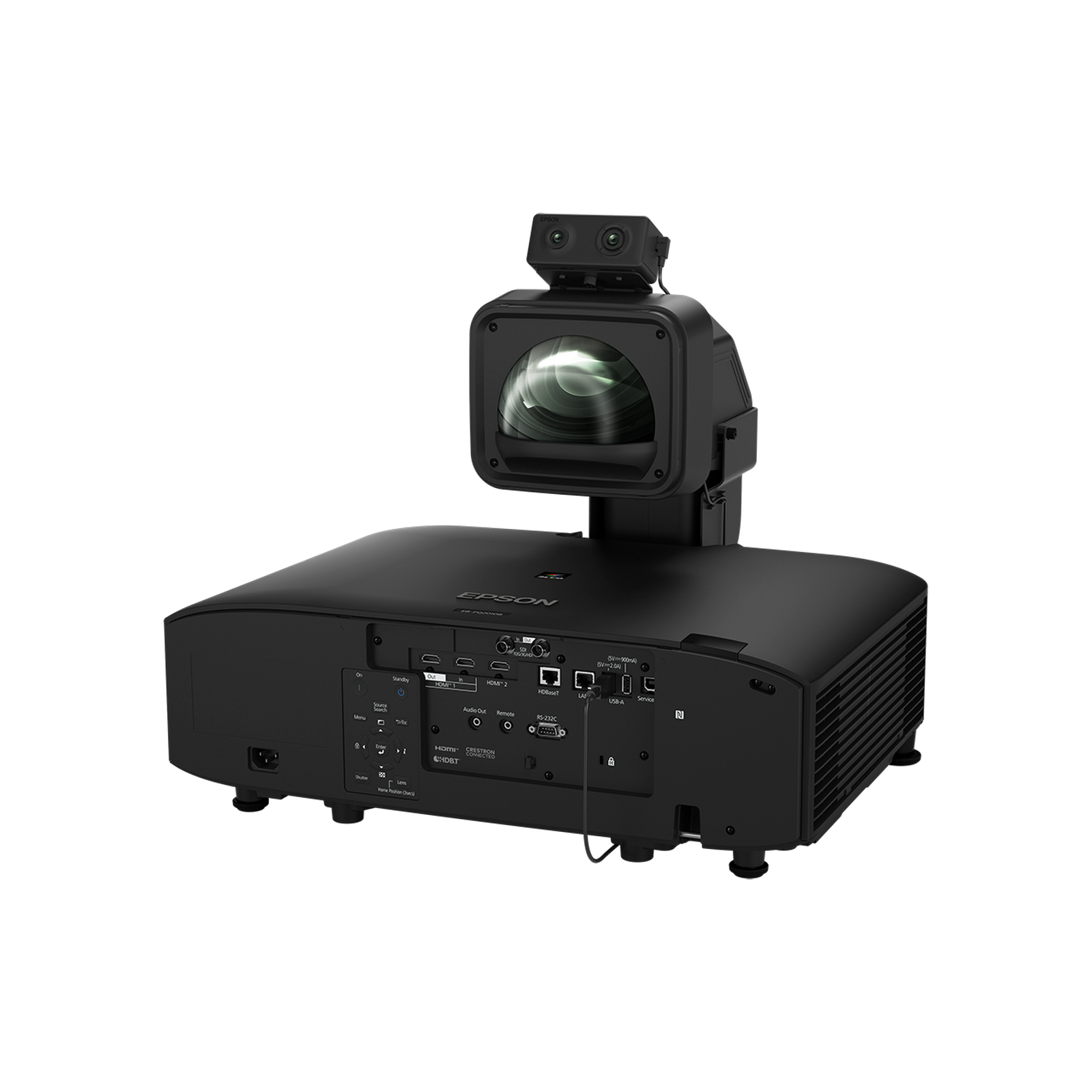

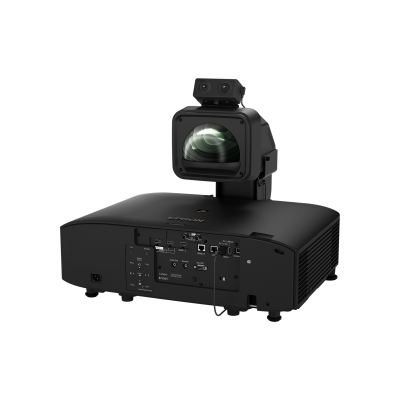

The EB-PQ2010W features a virtually maintenance-free 20,000-hour laser light source and air filter. The projector provides frame interpolation for fast-moving objects, as well as HDR support and scene adaptive gamma correction for lifelike images. The EB-PQ2010W pairs with 10 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and an optional attachable PixAlign™ camera to streamline multi-projector setups.
Features
World's smallest and lightest 10,000-lumen 4K projector
10,000 lumens of equal white and color brightness5
4K Crystal Motion technology
Virtually maintenance-free 20,000-hour laser light source
High native contrast for a realistic display
Specifications
Projection System: High-aperture Epson 3-chip 3LCD technology
Projection Method: Front/rear/ceiling mount
Driving Method: Poly-Silicon TFT Active Matrix
Pixel Number: 2,073,600 pixels (1920 x 1080) x 3 chips
Signal Input: Maximum Display Resolution: 4096 x 2160 pixels (resizing display)
Native Resolution: 1080p with 4K Crystal Motion (1920 x 1080 x 4)
Resolution on Screen: 4K UHD (3840 x 2160)
Aspect Ratio: Supports 4:3, 16:10, 16:9*, 21:9* * With vertical image shift control within letterbox area.
Pixel Arrangement: Cross stripe
Color Brightness: Color Light Output: 10,000 lumens
White Brightness: White Light Output: 10,000 lumens
Contrast Ratio: Up to 5,000,000:1 (Dynamic Contrast: On)
Brightness Uniformity: (Typical) 85%
Color Reproduction: Up to 1.07 billion colors
Keystone Correction: Vertical: ±45 degrees; Horizontal: ±30 degrees
Illumination Technology: Laser Phosphor
Light Source Life: 20,000 hours (Normal Mode) 30,000 hours (Extended Mode)
Projection Lens (Standard)
Standard Lens: ELPLM15 (sold separately)
Type: Powered shift/focus/zoom
F-Number: 2.0 – 2.1
Focal Length: 14.8 mm – 17.7 mm
Zoom Ratio: Optical Zoom: 1.0 – 1.6
Throw Ratio: Range 1.52 – 2.47
Lens Shift Vertical: ±60%; Horizontal: ±18%
Other Features
Operating Temperature: 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)
Operating Temperature: 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)
Power Consumption:640 W (Normal/Custom)
501 W (Quiet/Extended)
2.0 W Standby (Network Standby)
0.5 W Standby (Energy Saving)
Fan Noise: 39 dB (Normal Mode), 29 dB (Eco Mode)
Security Security: cable hole, lens lock, Kensington® lock provision, wireless LAN unit lock
Video I/0
Input Signal: Input Video Signal (HDMI and HDBaseT® ports): 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160 Max PC Graphics: 2560 x 1600/3440 x 1440
Auto Power On: Signal Detection on HDMI/Plug-In Detection (HDMI)
Sleep Mode: Yes (with timer)
HDMI CEC Control Yes

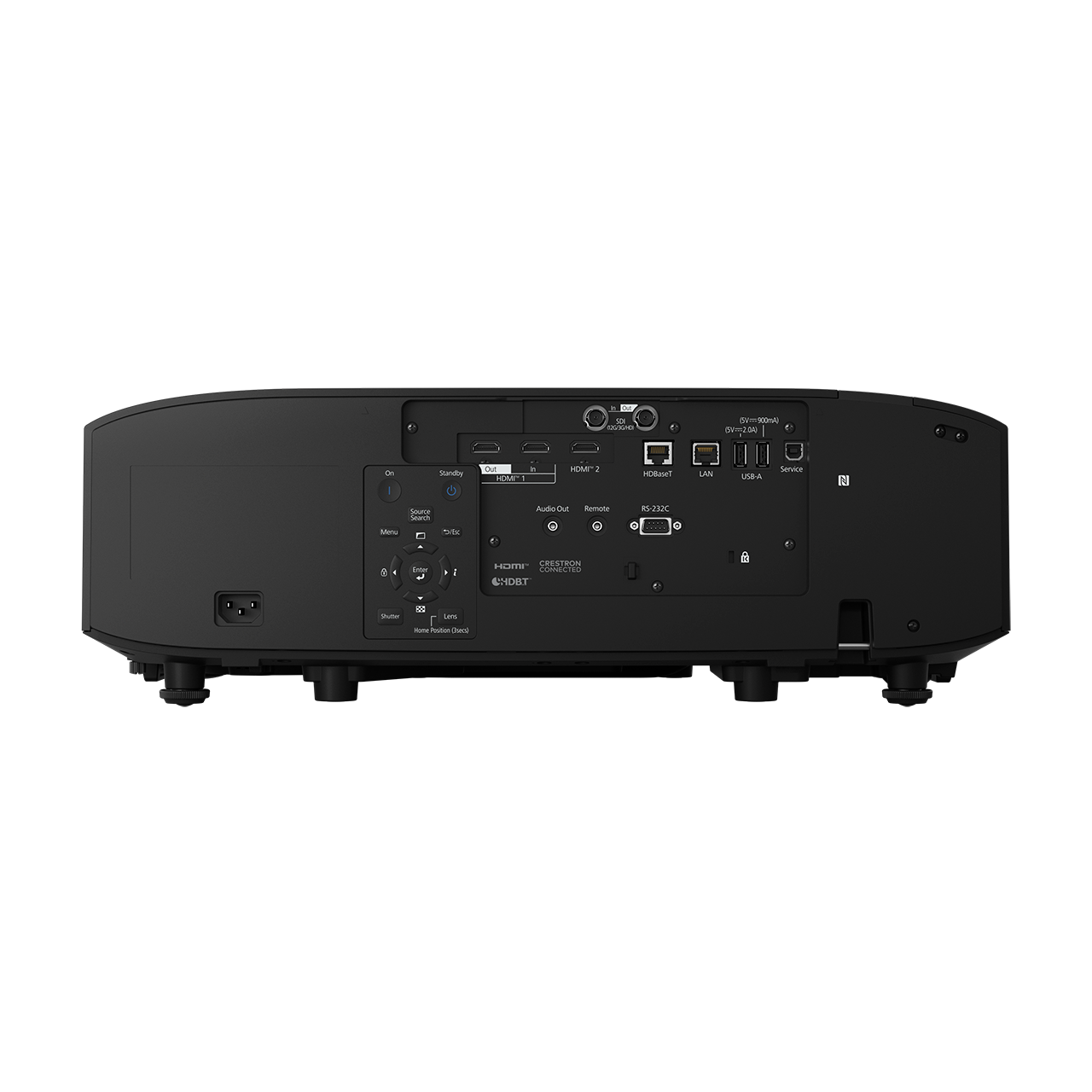

Interfaces
12G-SDI In/Out
HDMI (HDCP 2.3) x 2/HDMI Out x 1 HDBaseT x 1
Variable Audio Out: Mini Stereo x 1
USB Type-A for Wireless LAN (optional)
USB Connector Type-B x 1
Serial: RS-232c x 1
Remote Stereo Mini
Network: RJ-45
Dimensions (W x D x H)
Excluding Feet: 21.5" x 17.2" x 6.5" (545 mm x 436 mm x 164 mm)
Weight: 41.4 lb (18.8 kg)
Remote Control
Features: Power, Source Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Freeze, ID, Color Mode, Number, E-Zoom, Volume, Menu, Enter, ESC, Pointer Functions, Blend Guides, Multi-Projection, Color Tone Adjust and Memory
Operating Angle: Angle Front: Right/Left: 60 to +60; Upper/Lower: +30 to 20 degrees Angle Rear: Right/Left: 30 to +30; Upper/Lower: +50 to +10 degrees
Operating Distance: 98 ft
Eco Features
RoHS compliant
End-of-life options available
Epson America, Inc. is a SmartWay® Transport Partner
| Brand | Epson |
|---|
