Epson - EB-PQ2213B
SKU: EP0013
Epson - EB-PQ2213B
Leveraging our 4K Crystal Motion technology, thermo-control panel and double micro-lens array, the EB-PQ2213B laser projector delivers stunning 4K resolution on-screen. With 13,000 lumens of color and white brightness, the EB-PQ2213B produces captivating visuals in extraordinary detail. And a high native contrast ratio and 3-chip 3LCD technology means you will enjoy a realistic display enriched with vibrant colors and deep blacks.
Designed for fixed installation applications and to meet the rigorous demands of live events, the EB-PQ2213B features a filterless cabinet, IP5X-rated hermetically sealed optical and light source unit, and a virtually maintenance-free 20,000-hour laser light source. The projector provides frame interpolation for fast-moving objects, as well as HDR support and scene adaptive gamma correction for lifelike images. The EB-PQ2213B pairs with 10 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and an optional attachable PixAlign™ camera to streamline multi-projector setups.
Features
13,000 lumens of equal white and color brightness
4K Crystal Motion technology
Virtually maintenance-free 20,000-hour laser light source
High native contrast for a realistic display
10 optional powered lenses (sold separately)
Projection System: High-aperture Epson 3-chip 3LCD technology
Projection Method: Front/rear/ceiling mount
Driving Method Poly-Silicon TFT Active Matrix
Pixel Number: 2,073,600 pixels (1920 x 1080) x 3 chips
Signal Input: Maximum Display Resolution: 4096 x 2160 pixels (resizing display)
Native Resolution: 1080p with 4K Crystal Motion (1920 x 1080 x 4)
Resolution on Screen: 4K UHD (3840 x 2160)
Aspect Ratio: Supports 4:3, 16:10, 16:9, 21:9 * With vertical image shift control within letterbox area.
Pixel Arrangement: Cross stripe
Color Brightness: Color Light Output: 13,000 lumens
White Brightness: White Light Output: 13,000 lumens
Contrast Ratio: Up to 5,000,000:1 (Dynamic Contrast: On)
Brightness Uniformity: (Typical) 85%
Color Reproduction: Up to 1.07 billion colors
Keystone Correction:
Vertical: ±45 degrees;
Horizontal: ±30 degrees
Illumination Technology: Laser Phosphor
Light Source: Life
20,000 hours (Normal Mode)
30,000 hours (Extended Mode)
Projection Lens (Standard)
Standard Lens: ELPLM15 (sold separately)
Type: Powered shift/focus/zoom
F-Number: 2.0 – 2.1
Focal Length: 14.8 mm – 17.7 mm
Zoom Ratio: Optical Zoom: 1.0 – 1.6
Throw Ratio Range: 1.52 – 2.47
Lens Shift:Vertical: ±60%;
Horizontal: ±18%
Other Features
Operating Temperature: 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)
Power Supply Voltage: 100 V – 240 V AC ±10%, 50 Hz – 60 Hz
Power Consumption:
951 W (Normal/Custom)
680 W (Quiet/Extended)
2.0 W Standby (Network Standby)
0.4 W Standby (Energy Saving)
Fan Noise:37 dB (Normal Mode)
34 dB (Eco Mode)
IP Rating: IPSX9
Security: Security cable hole, lens lock, Kensington® lock provision, wireless LAN unit lock
Video I/O
Input Signal: Input Video Signal (HDMI and HDBaseT® ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160
Auto Power On: Signal Detection on HDMI/Plug-In Detection (HDMI)
Sleep Mode: Yes (with timer)
HDMI CEC Control: Yes

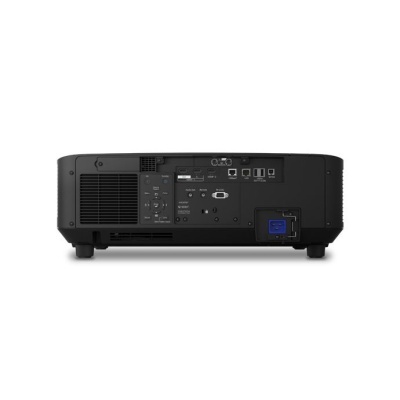

Interfaces
12G-SDI In/Out
HDMI (HDCP 2.3) x 2/HDMI Out x 1
HDBaseT x 1
Variable Audio Out: Mini Stereo x 1
USB Type-B x 1
USB Type-A x 2 (5 V, 2.0 A)
USB Type-A for Wireless LAN (optional)
Serial: RS-232c x 1 (9-pin)
Remote Stereo Mini
Network: RJ-45
Dimensions (W x D x H)
Excluding Feet: 23.1" x 19.4" x 7.3" (586 mm x 492 mm x 185 mm)
Weight: 63.4 lb (28.8 kg)
Remote Control
Features: Power, Source Search Selection, Lens Shift/Zoom/
Focus, Test Pattern Selection, Shutter, Freeze, ID, Color Mode,
Number, E-Zoom, Volume, Menu, Enter, ESC, Pointer Functions,
Blend Guides, Multi-Projection, Color Tone Adjust and Memory
Operating Angle:
Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +5 degrees
Operating Distance: 98 ft
Eco Features
RoHS compliant
End-of-life options available
Epson America, Inc. is a SmartWay® Transport Partner
| Brand | Epson |
|---|
