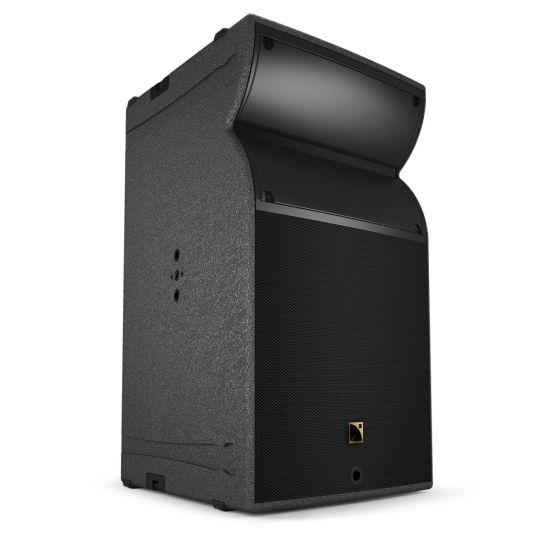

L-Acoustics - A15 Focus - 2-way 10° enclosure
L-Acoustics - A15 Focus - 2-way 10° enclosure

L-Acoustics - A15 Focus - 2-way 10° enclosure

SKU: LA30306F

L-Acoustics - A15 Focus
A15 Focus is a medium throw loudspeaker designed for production applications. Part of the multifunctionnal A15 family, the passive 15“ enclosure offers exceptional deployment flexibility and simplicity without compromising performance.

With a tightly-controlled 10° enclosure coverage, A15 Focus boasts an impressive ouptut of 144 dB and ensures projection up to 45 m.
Panflex allows users to adapt the directivity to the audience geometry and ensure exceptional frequency response stability.

Combinations of A15 Focus and A15 Wide can be flown or stacked to form a vertical line source.  A15 Focus can also be used individually as a configurable directivity point source for front fill or delay applications where a narrow coverage is required.

A15 Focus provides the low frequency contour of a large concert system and KS21 subwoofer further reinforces the contour and extends
the bandwidth to 29 Hz. A15 Focus is a highly scalable solution that delivers concert level performance for small to large events or supplements a larger L-Acoustics solution for the world’s biggest stages.

Description

2-way passive constant curvature WST 10°,  amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB)

41 Hz - 20 kHz ([A15])
Maximum SPL1

144 dB ([A15])
Nominal directivity

Enclosure: 10°
Panflex: 70°/110° symmetric or 90° asymmetric
Transducers

LF: 1 × 15’’ neodymium cone driver
HF: 1 × 3’’ diaphragm neodymium compression driver
Acoustical load

LF: Bass-reflex, L-Vents
HF: DOSC waveguide, Panflex
Nominal impedance

8 Ω

Connectors

IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
Rigging and handling

Flush-fitting two-point rigging system 2 handles, 8 corner stops and 2 ground runners
Safety

1 DIN580-compatible M8 insert
Weight (net)

35 kg/77 lb
Cabinet

Premium grade Baltic beech and birch plywood
Front

Coated steel grill Acoustically neutral 3D fabric
Rigging components

High grade steel with anti-corrosion coating
Finish

Dark grey brown Pantone 426 C
IP

IP55

Brand L-Acoustics
