L-Acoustics - LA-RAK II AVB - Touring rack AVB
SKU: LAAMP01
L-Acoustics - LA-RAK II AVB - Touring rack AVB

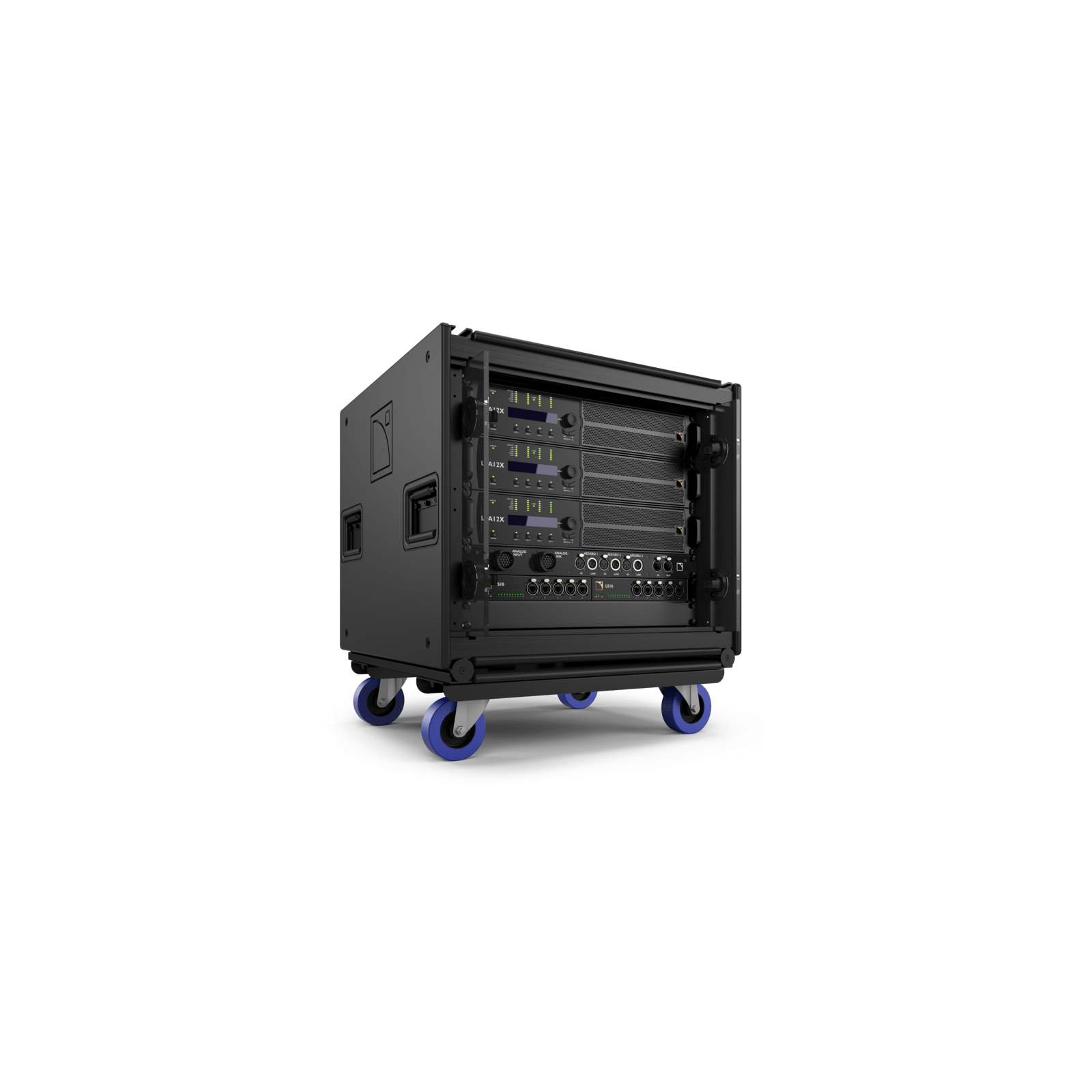

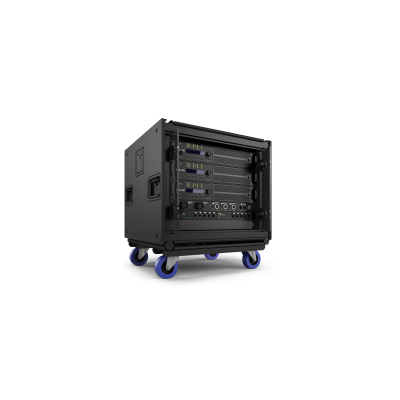

LA-RAK II AVB is a flyable touring rack offering twelve channels of amplification in a 9 U frame. Three LA12X amplified controllers, two LS10 AVB switches and power and signal distribution panels are internally prewired to offer a plug-and-play, reliable solution that allows for seamless networked audio redundancy based on the Milan protocol.
The rugged LA-RAK II AVB features a shock-absorbing inner frame, protective and handling elements to ease transport and manipulation. With power connectors for any voltage standard, LA-RAK II AVB can be used worldwide to facilitate tour logistics and cross-rental between L-Acoustics rental network agents.
LA-RAK II AVB
Content:3 x LA12X amplified controller
2 x LS10 AVB switch
1 x LA-PANEL II
1 x LA-POWER II
2 x doors, cables and 2 x coupling bars
Weight (net): 101.5 kg / 223.8 lb (with all the above)
Material: Polyethylene, aluminium and steel external structure, LEXAN® polycarbonate doors
Rigging and handling: 2 x coupling bars, dolly board
LA-PANEL II

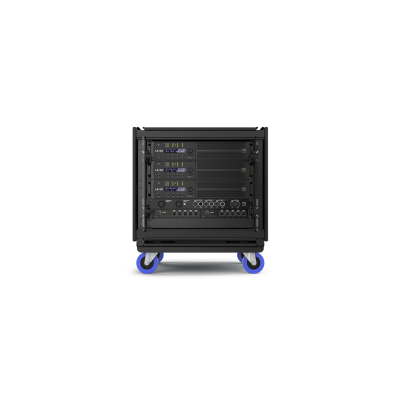

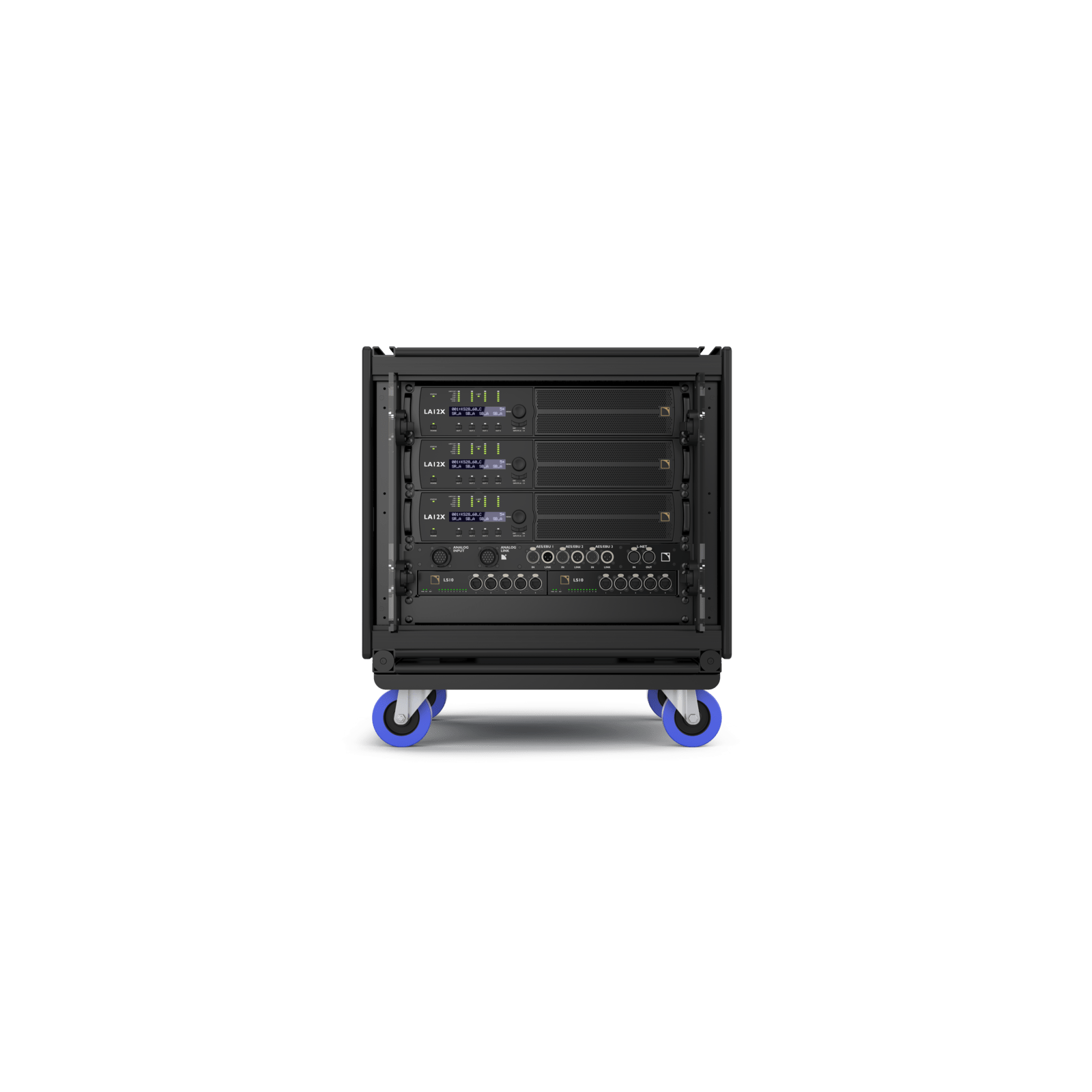

Front
Analog input/link: 2 x 19-point CA-COM
AES/EBU input/link: 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK)
Network: 2 x etherCON® (L-NET IN/OUT) - Unused

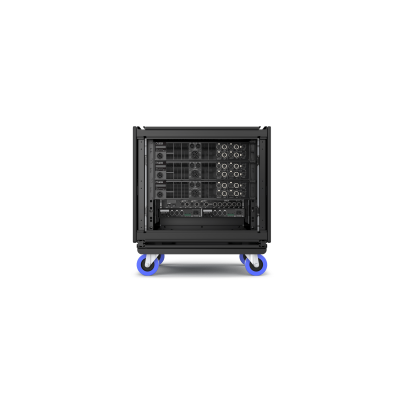

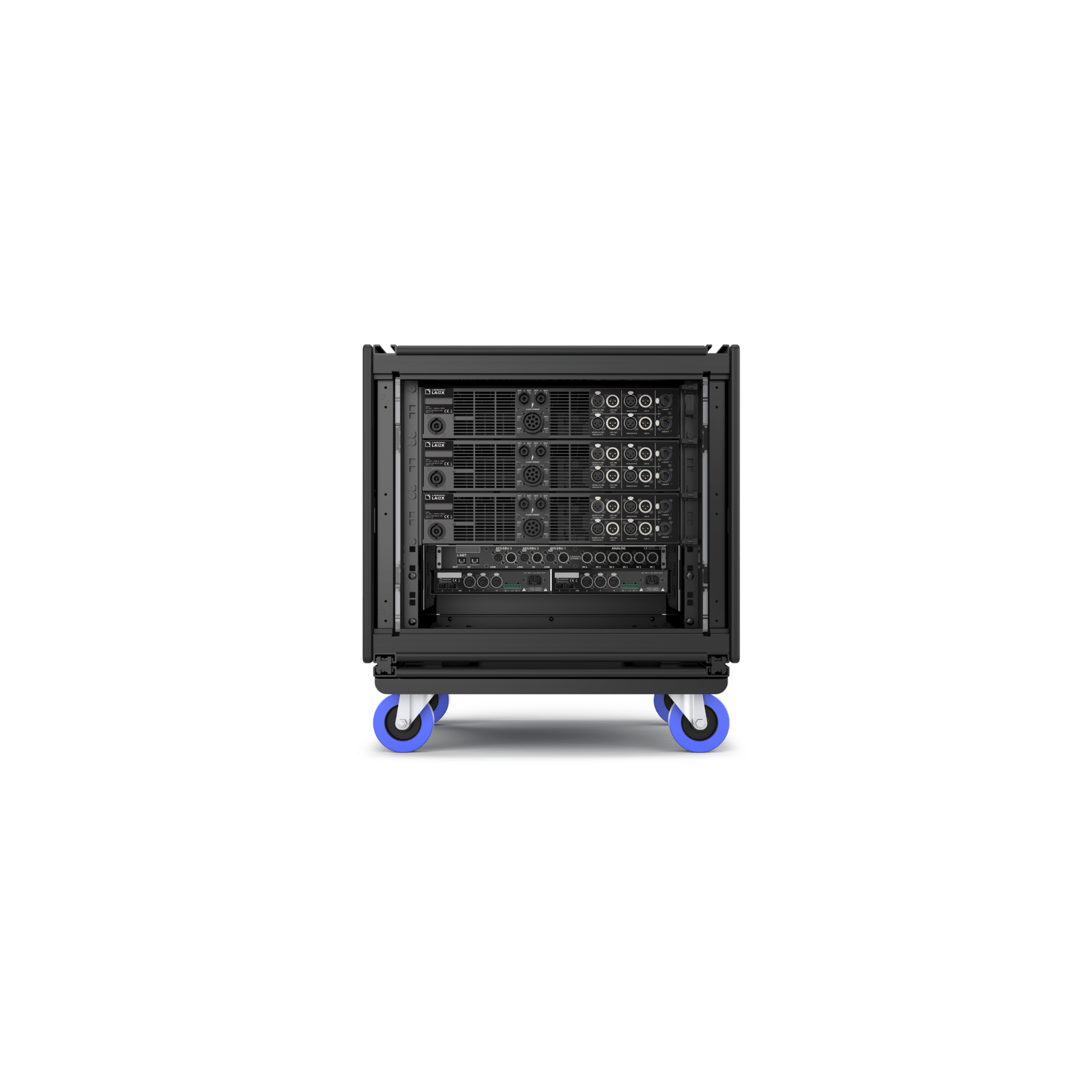

Rear
Analog input: 6 x male Neutrik® XLR3 (IN 1 to IN 6)
AES/EBU input/link: 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK)
Network: 2 x RJ45 (L-NET) - Unused
LA-POWER II
Front
AC input (US): 30 A - NEMA L21-30P (3P+N+E) male outlet
AC input/link out (EU):32 A - IEC 60309 (3P+N+E) male outlet
32 A - IEC 60309 (3P+N+E) female outlet
DANGER: Do not use with a 120 - 208 V power supply.
AC presence: 3 x dual LEDs: Left: US AC input / right: EU AC input
AC auxiliary output (US): NEMA 5-15 female outlet (AUX US MODE)
AC auxiliary output (EU): Type F «Schuko» female outlet (AUX EU MODE)
Protection: 10 A type C circuit breaker (AUX L3)
Rear
AC output for LA12X: 3 x power cords fitted with 32 A Neutrik powerCON® connectors (AMP 1 L1, AMP 2 L2, AMP 3 L3)
AC input selector switch:Switch between EU MODE and US MODE
Important: Do not switch mode when connected to power supply.
AC output for LS10: 2 x IEC 60320-1 type C13 female outlets (AUX L3)
| Brand | L-Acoustics |
|---|
