L-Acoustics - LS10 CE - 10-port AVB Switch. CE Version
SKU: LA0010AV

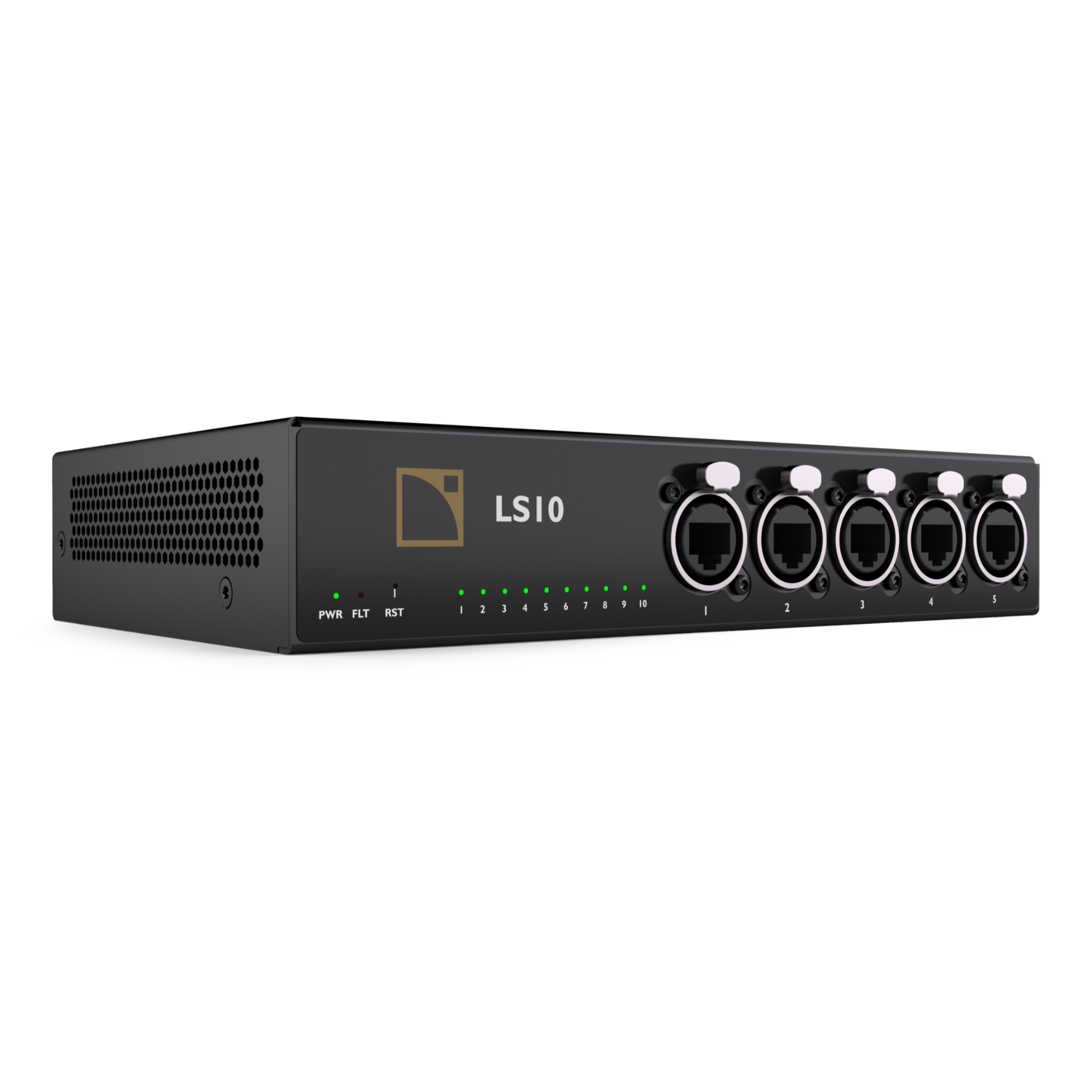

L-Acoustics - LS10 CE
LS10 is a plug-and-play Avnu-certified AVB switch that integrates seamlessly within the L-Acoustics ecosystem to further simplify connectivity, uniting audio and control distribution. LS10 runs out-of-the-box AVB, providing a reliable network solution that does not require IT expertise.

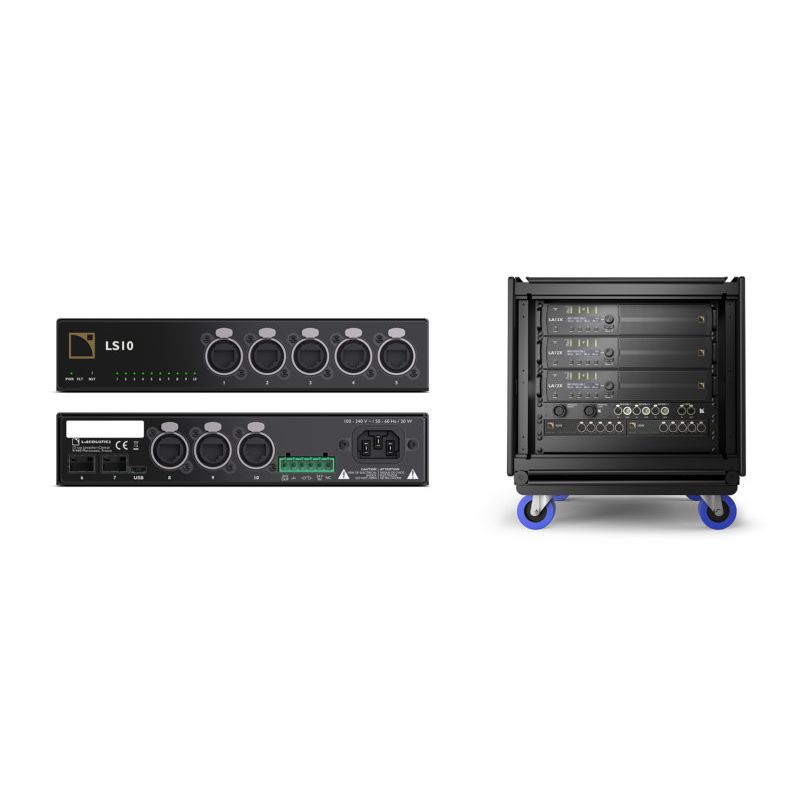

On its own or as an integral part of the LA-RAK II AVB, LS10 distributes audio and control via front and rear EtherCON™ connectors and SFP cages, enabling long-distance optical links. Two units mounted side-byside on LS10-RAKSHELF, the dedicated 1U rack shelf, allow to create a seamless redundant network effortlessly. Upgrading LA-RAK II to LA-RAK II AVB is possible.
The rugged LS10 incorporates features designed to overcome the challenges of touring events but also installation applications. The quick, 5-second, startup time allows for rapid recovery in case of power loss. A configurable GPO port enables status monitoring and the auxiliary DC input offers ultimate reliability.
With LS10, lightning-quick setup of a stable distribution of your AVB signal is ensured without the need for extensive IT knowledge or experience.
Features:
10-port plug-and-play AVB Switch
Rugged, built for touring
Designed for AVB redundancy in LA-RAK II AVB
EtherCONTM and SFP cages connectors for long distance connectivity
5-second start-up time
Redundant power input (24V DC)
General fault indication (GPO)
General
Mains rating: 100 V - 240 V AC (± 10%), 50 Hz - 60 Hz
Power consumption: 10 W (normal operation), 20 W (redundancy operation)
Operating temperature: -5 °C / 23 °F to 50 °C / 122 °F
Connectors
Network connectivity: 8 Neutrik EtherCON™ (5 on Front, 3 on Rear)
2 SFP cages (Rear) compliant with SFP transceivers
Power connectivity:1 IEC inlet with lock compatible to Schurter V-Lock™
1 redundant 24V DC power input
1 redundant 24V DC power output
User configurable GPO: 1 potential free GPO on Phoenix connector
AVB
AVB Ports: 10 AVB ports at 1 Gb/s
AVB Bridge: IEEE 802.1BA-2011 standard, Augmented by Avnu ProAV 1.1 requirements
Number of supported streams: 150
Time to forward AVB streams after power up: 5 seconds
Features
Management: gPTP grandmaster capable, RSTP
Port Sensing: Auto negotiation
Auto Crossover: MDI / MDIX (allows to use straight or cross cables)
Auto Sensing: Full or Half Duplex
Interface: Power status LED, fault status LED, link up/activity status LEDs, Reset to factory settings button, micro USB
Physical data
Height x Width: 1.7“ x 9,5“ (1U x 1/2 U)
Weight: 1.5 kg / 2.2 lb
| Brand | L-Acoustics |
|---|
