SKU: LASOKA01

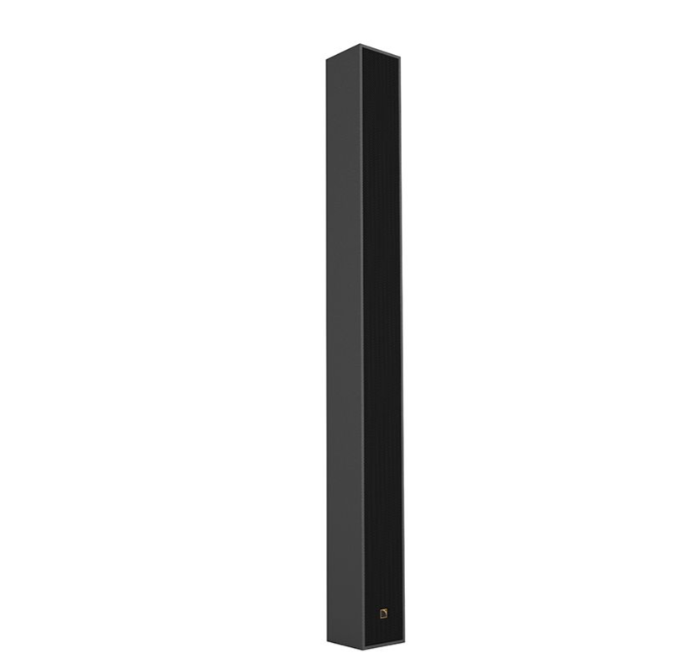

SOKA ultra-shallow clinear source
Soka is an ultra-shallow colinear source designed for premium installations requiring discretion and elegance. Part of the S Series, Soka inherits the line source technology providing high fidelity and live concert power to high-end architectural and professional sound reinforcement settings, with minimal to none visual impact, such as lounge bars, luxury commercial and hospitality spaces, museums, lecture halls, churches and concert halls.
Soka produces an output of 130 dB over a broad bandwidth and features an outstanding horizontal coverage of 140° and a thighlycontrolled vertical directivity of 26°, making it a perfect main system in reverberant spaces or an ideal surround companion for larger sound designs.

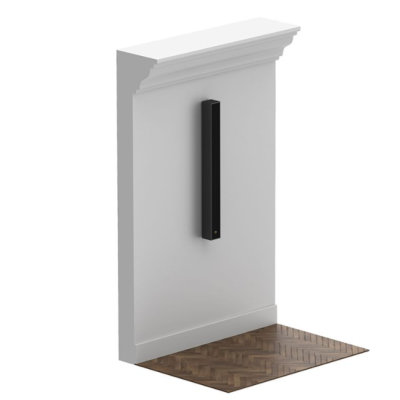

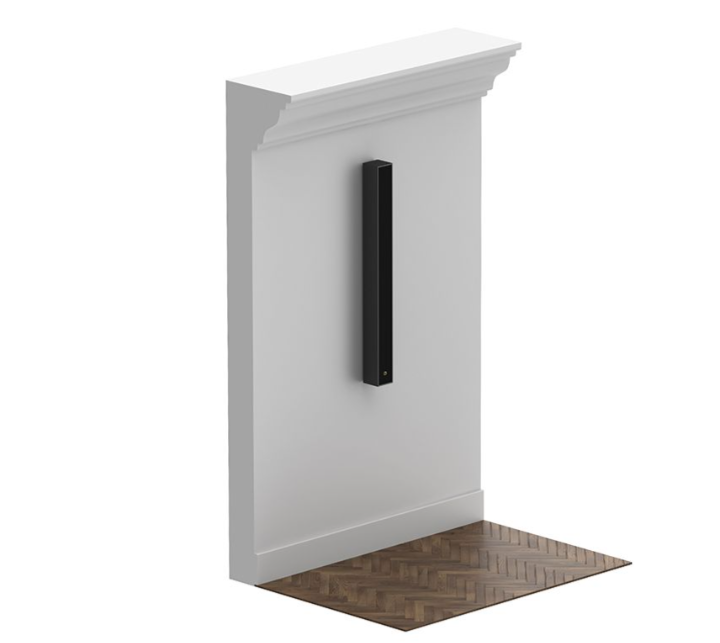

The ultra-shallow and slender design of Soka enables on-wall and inwall integrations. The weatherized enclosure can be color-matched to the decor, ideal for any indoor or outdoor installations.

Description
Passive 2-way colinear enclosure amplified by LA7.16i / LA2Xi / LA4X / LA12X
Usable bandwidth (-10 dB)
Full Range preset [Soka_FR]
SPL preset [Soka_SPL]
70 Hz - 20 kHz
100 Hz - 20 kHz
Maximum SPL *1, 2
124 dB
130 dB
Nominal directivity (-6 dB)
Vertical : +5/-21°

Horizontal: 140°
Transducers
LF: 9 x 3.5’’ neodymium cone drivers

HF: 3 x 1’’ neodymium compression driver
Acoustical load
LF: closed enclosure

HF: DOSC waveguide, L-Fins
Nominal impedance
8 Ω
Connectors
4-point terminal block with push-in connection and connector sealing plate
Rigging and handling
sealing plate Rigging and handling 6 x M6 inserts for external rigging kits
Weight (net)
10 kg / 22 lbs
Cabinet
Premium grade beech and birch plywood
Front
Coated steel grill Acoustically neutral 3D fabric
Finish
Dark grey brown Pantone 426C

Pure white RAL 9010

Custom RAL code on special order
IP
IP55

Brand L-Acoustics
