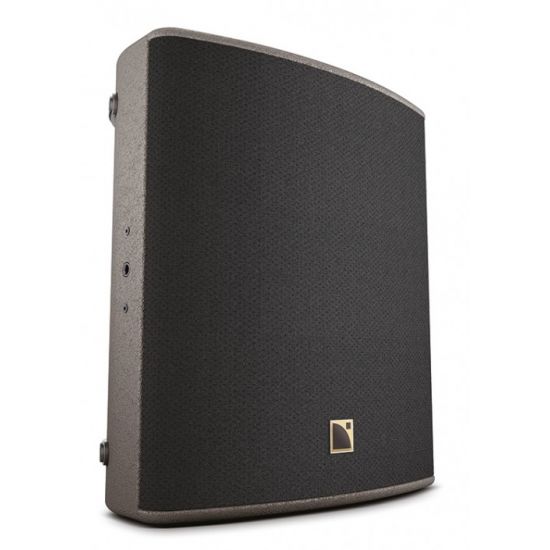

In the L-Acoustics coaxial X series, the X12 is the multipurpose passive enclosure. It operates from 59 Hz to 20 kHz.

The X12 features a 3’’ diaphragm compression driver coaxiallyloaded by a 12’’ low frequency transducer in a bass-reflex enclosure with laminar vents. The internal passive crossover network uses custom filters.

The coaxial transducer arrangement and its ellipsoid acoustic design produces a 90° x 60° directivity pattern with a smooth tonal response free of secondary lobes over the entire frequency range. As a result, the X12 cabinet design makes it perfectly suited to all short throw sound reinforcement applications.

The X12 provides a stage monitoring angle setting of 35° with regard to vertical or 55° thanks to its built-in risers. With a cabinet combining the properties of birch and beech plywood, X12 low weight and elegance makes for an easy integration in any situation. Ergonomic handles for a solid grip and efficient handling. The X12 can be pole-mounted using the integrated socket or flown and tilted in various orientations using its rigging accessories.

The amplified controllers L-Drive parameters ensure the linearization and protection of the transducers.

Description: Passive 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
Usable bandwidth (-10 dB): 59 Hz - 20 kHz ([X12][ preset)
Maximum SPL: 136 dB ([X12] preset)
Nominal directivity: Vertical: 90°
Horizontal: 60°
Monitoring angle: 35° without risers
55° with risers
Transducers: LF: 1 x 12" neodymium, bass-reflex, laminar vents
HF: 1 x 3" neodymium compression driver, ellipsoid waveguide
Nominal impedance: 8 Ω
Connectors: IN: SpeakON®
LINK: SpeakON®
Rigging and handling: 2 x handles
DIN580-compatible M8 threaded insert
4 x M10 threaded inserts
2 x 35 mm pole sockets
Weight (net): 20 kg / 44.1 lbs
Cabinet: First grade Baltic birch and beech plywood
Finish: Dark grey brown Pantone® 426C
Pure white RAL® 9010
Custom RAL® code on special order
IP: IP43
