L-Acoustics - X4i

L-Acoustics - X4i

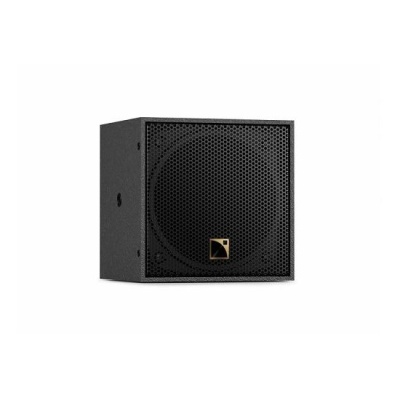

X4i is an installation-specific miniature coaxial system designed for short throw applications requiring seamless integration in the smallest spaces. X4i features a 1.4” diaphragm compression driver coaxially loaded by a 4”
neodymium low-mid frequency transducer mounted in a closed cabinet.

X4i operates from 120 Hz to 20 kHz and delivers a peak SPL of 116 dB. The coaxial transducer arrangement produces 110° axisymmetric directivity with a smooth tonal response free of secondary lobes over the entire frequency range.
The internal passive crossover network uses custom filters. The L-Acoustics amplified controllers L-Drive parameters
ensure the linearization and protection of the transducers.

Description: 2-way passive coaxial enclosure amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB): 120 Hz - 20 kHz ([X4])

Maximum SPL1: 116 dB ([X4])

Nominal directivity: 110° axisymmetric

Transducers: LF: 1 × 4’’ neodymium

HF: 1 × 1.4’’

Acoustical load: Closed enclosure

Nominal impedance: 16 Ω

Connectors: IN: 1 × 2-point screw terminal

LINK: 1 × 2-point screw terminal

Rigging and handling: 2 M5 inserts on the side for X-U4i

2 M6 inserts on the back for rigging accessories

Safety: 1 M6 insert on the back for secondary safety

Weight (net): 1 kg / 2.2 lb

Cabinet: First grade Baltic birch plywood

Front: Steel grill with anti-corrosion coating

Finish: Dark grey brown Pantone 426C

Pure white RAL 9010

Custom RAL code on special order

IP: IP55²
