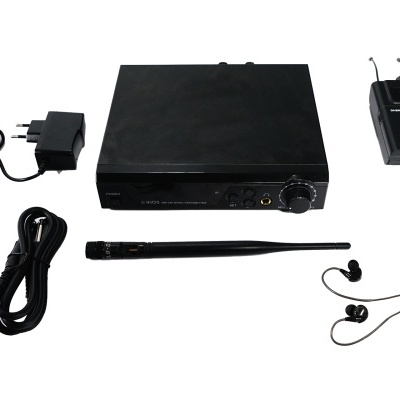

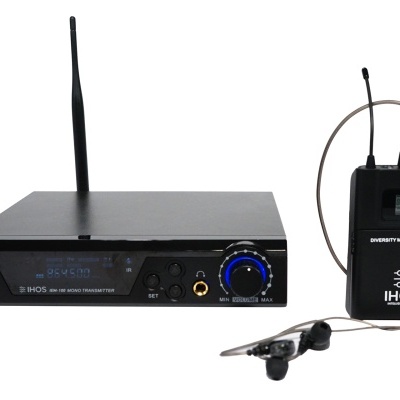

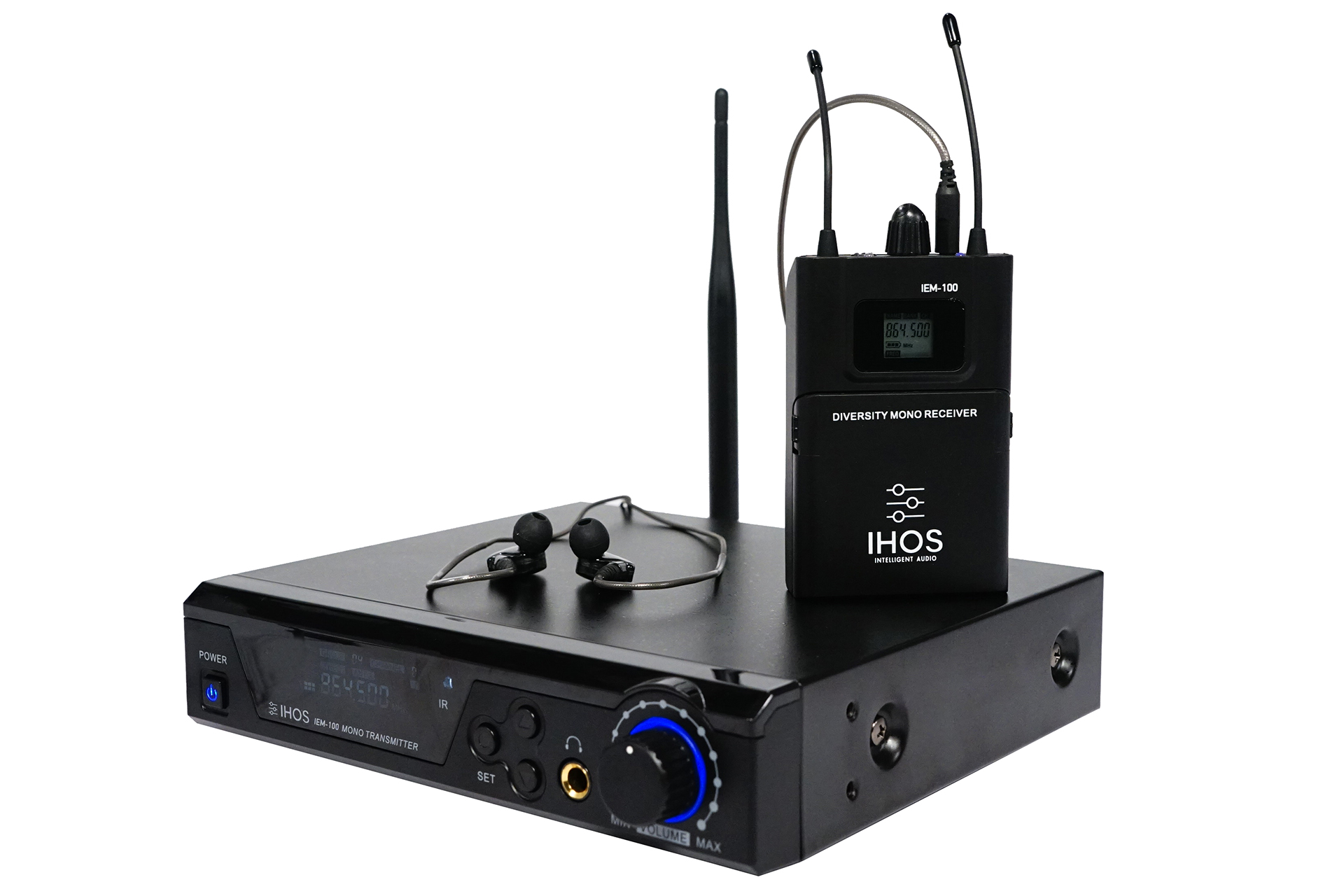

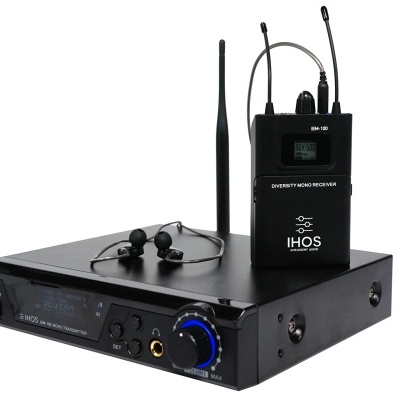

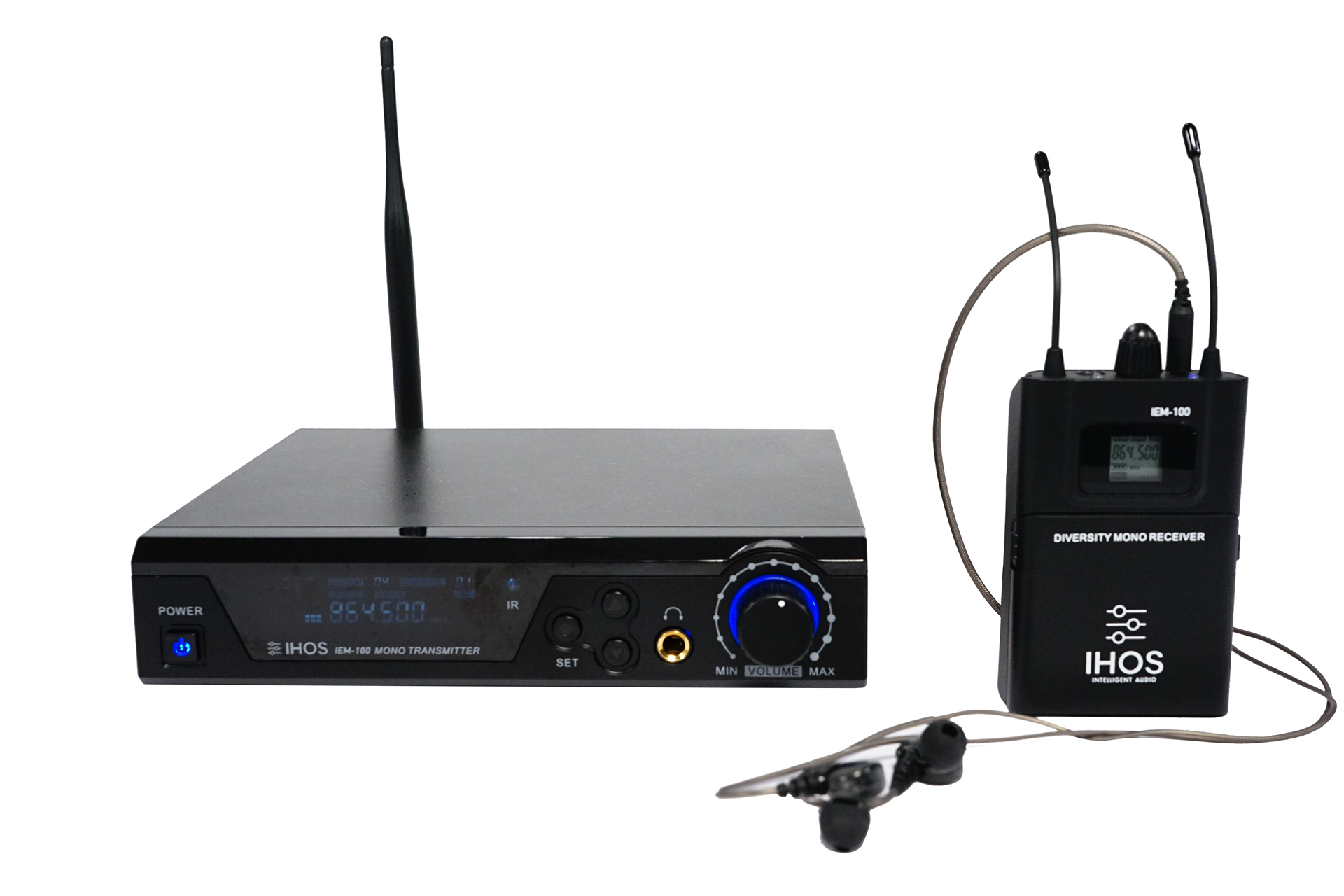

Wireless in ear monitor system, freq. range 863-865MHZ IEM-100

Wireless in ear monitor system, freq. range UHF 863-865MHZ, IR sync downloading the frequency from receiver, LCD display shows the RF level, AF level, channel and frequency, 200m line-of-sight operating range.

Features


UHF 863-865MHz frequency range
Mono Outputs, four levels RF output selectable
True diversity for maximum range and dropout protection
PLL Synthesized circuit
IR sync downloading the frequency from receiver
LCD display shows the RF level, AF level, channel and frequency.
EIA standard 1/2U rack-mountable metal chassis
Up to 200m line-of-sight operating range
Designed for professional stage performance applications.

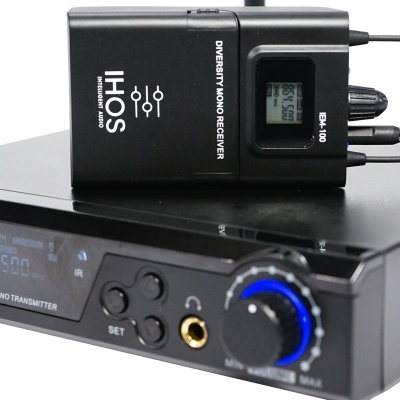

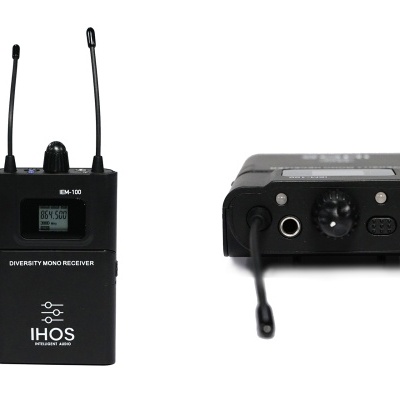

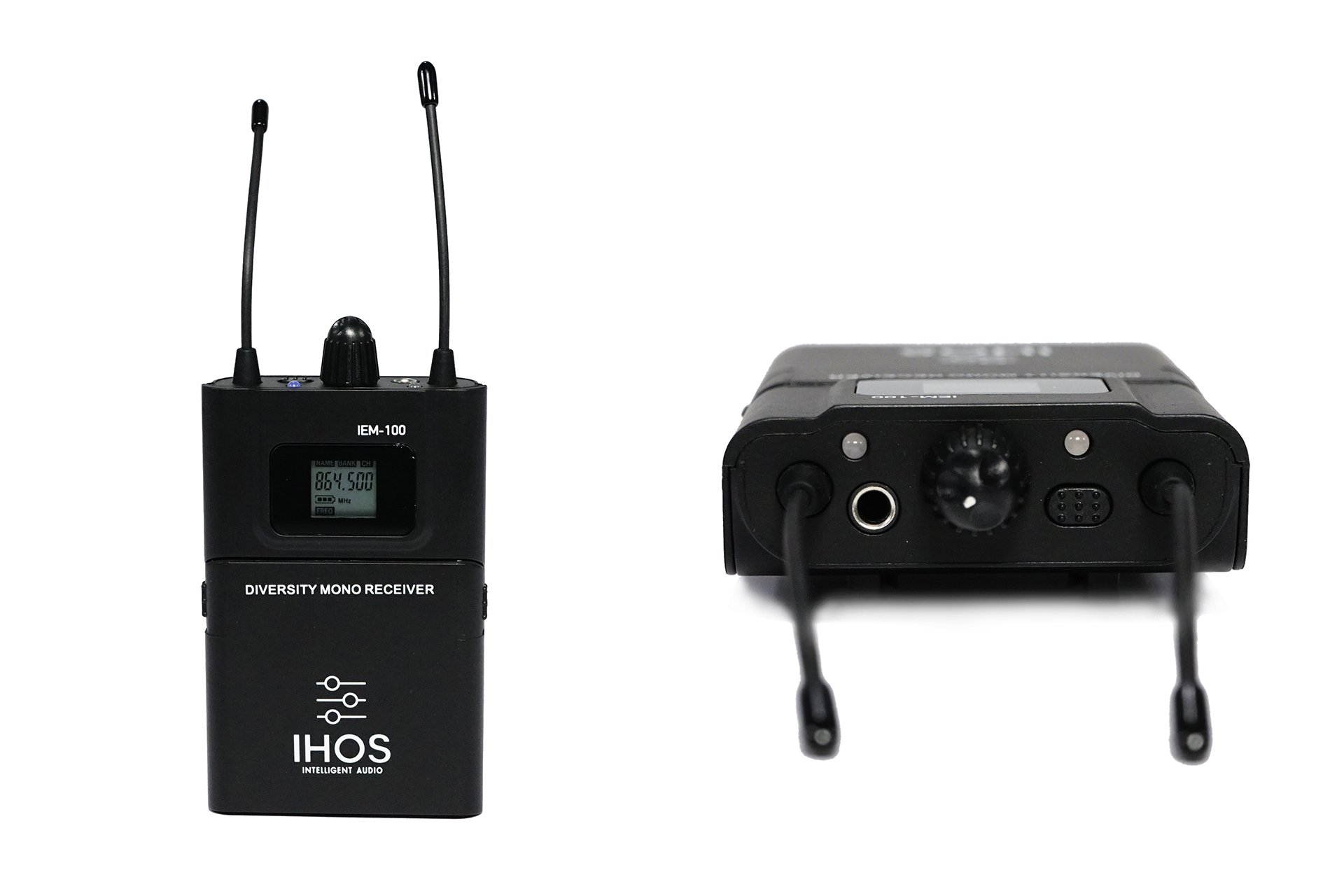

Receiver(Belt-pack)

Frequency Range: 863-865 MHz.
Transmission Method: FM, Mono.
Frequency Response: 60Hz-17KHz.
Total Harmonic Distortion: <0.7% at 1KHz.
Signal/Noise Ratio: ≥105dB.
Earphone output: 3.5mmφ/ 16ohms 105mW.
Receiving Sensitivity: 10dBuV(80dB S/N).
Battery Voltage: 3V (2x1.5V AA Battery).
Power Consumption: 8 hours, battery-dependent.

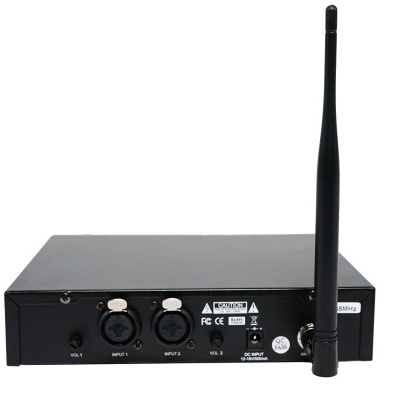

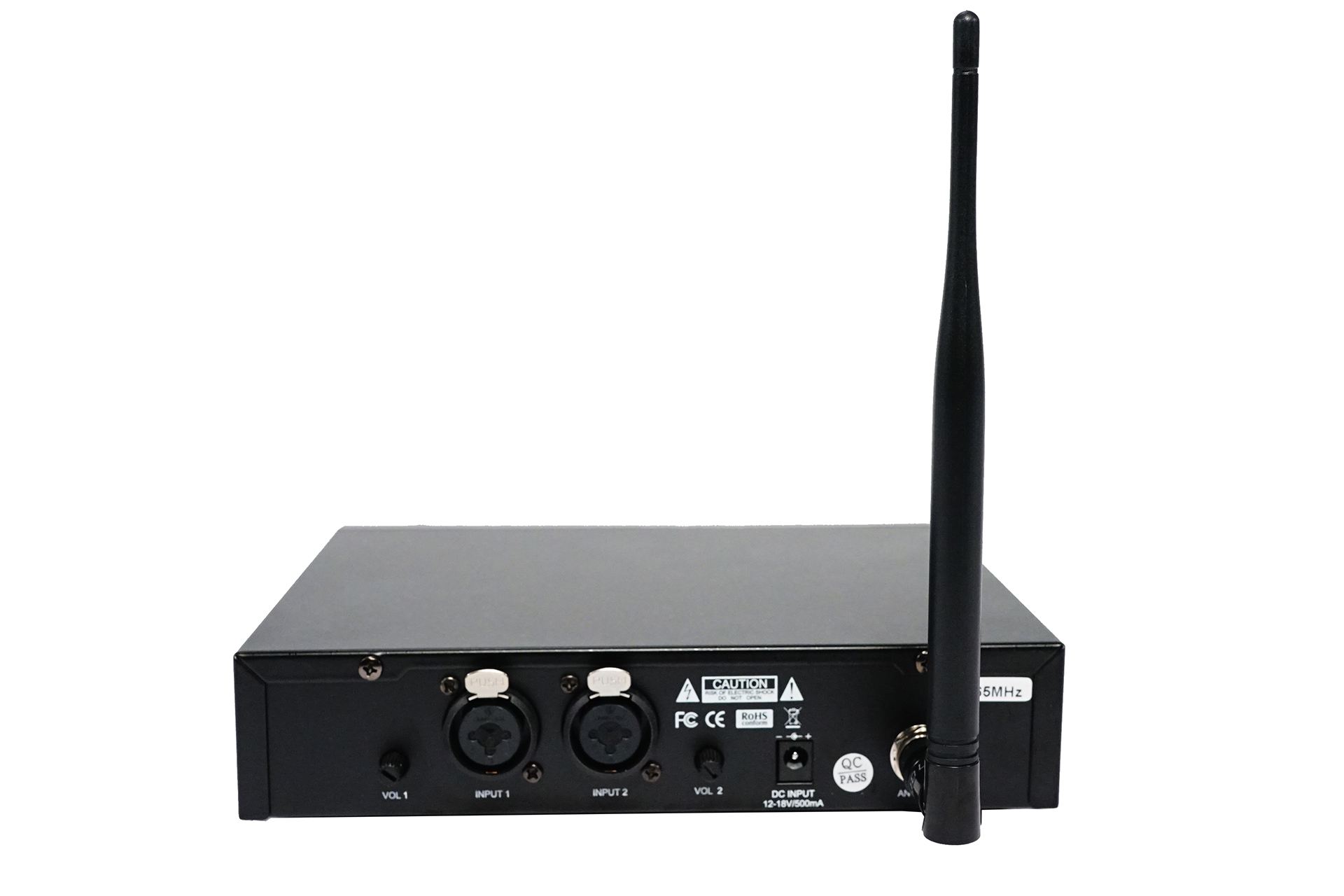

 Transmitter

Frequency Range: 863-865 MHz.
Transmission Method: FM, Mono.
Transmitter Power: 5/10/30/100mW.
Frequency Response: 50Hz-17KHz.
Total Harmonic Distortion: <0.5% at 1KHz.
Deviation: 45KHz.
Input impedance: 32ohms.
Power Supply: DC12V-18V / 500mA .
