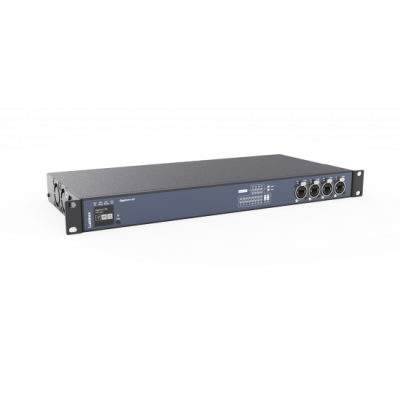

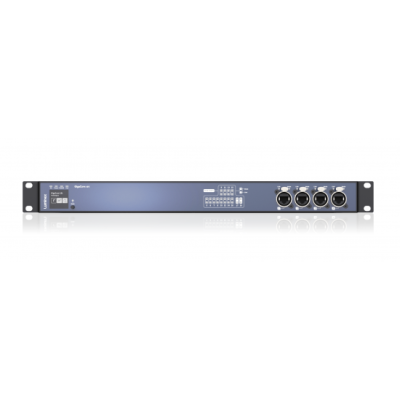

Luminex - GigaCore 18t – 16x1G – 2x10G(SFP+) – PoE++
SKU: 27311LU
Luminex - GigaCore 18t – 16x1G – 2x10G(SFP+) - PoE++
The GigaCore 18t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary. It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
Robust yet silent design
A robust yet silent design allows you to use GigaCore in any AV environment. Fans are speed controlled to have minimal noise impact and guarantee a long-life operation. This allows you to place the GigaCore in the most quiet environments like theaters and studio’s.
Key features
Most suitable applications: Touring applications
PoE: PoE ++ Optional
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes (With future FW upgrade)
Profile manager: Yes
Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
MAC address table: 16384 entries
Address learning / Aging: Self learning, Auto aging
Switching throughput: 72Gbps
Jumbo frames: MTU up to 12000
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
PHYSICAL
Mounting: Rack
Enclosure: Robust metal housing
Dimensions (W x D x H): 482 x 216,95 x 44 mm (19" x 8.54" x 1,73")
Weight: TBC
Packaging: TBC
Environment:Operating temperature: 0 to +50 °C
Storage temperature: -10 to +70 °C
Humidity (non condensing): 5 to 95% RH
Noise level @1m: TBC
BTU:
Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
Standards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
CONNECTIVITY
Ethernet connectivity: 8 x EtherCon conectors ) (4x front, 4x rear) (1Gbps) 8 x RJ 45 connectors (rear) (1Gbps)
Fiber connectivity: 2 x SFP+ cages (10Gbps/1Gbps) (independent from other ports) (rear)
Ethernet port speed: 1Gbps
Serial: No
POWER
Power connectivity: 1 x PowerCON True 1 in/out
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 50W - Maximum 1050W (Depending on PoE and PSU configuration)
Fuse: NA
Backup power input: Yes (PoE models only)
Backup PoE power input: Yes
PoE: PoE ++ Optional
CONFIGURATION
Display and jog: No
Configuration: Through the built-in web server, Network wide configuration through Araneo software
Status LEDs:Global status LEDs: Device, power, PoE power and mode
Port status LEDs: PoE, groups, link/activity and port speed
Dark mode available
Colored RGB LEDs: Yes
PROTOCOLS
Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN
Sound protocol compliance: Yes (low jitter)
Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVB
