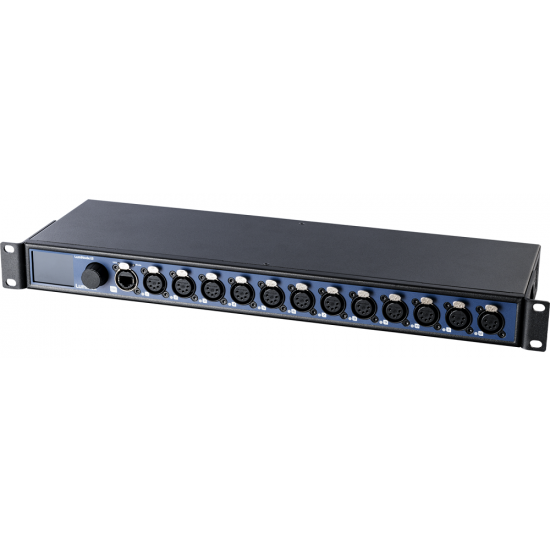

Luminex - LumiNode 12 - DMX Gateway

Luminex - LumiNode 12 -DMX Gateway
LumiNode 12 is the ideal full 19" rack unit that offers you the highest density of DMX/RDM ports on the market
16 processing engines and 12 DMX ports

Technical details:

Full 19" high density rack unit
12 x DMX/RDM 5-pin connector, fully isolated
1 x RGB LED per DMX/RDM port for activity indication
2 x EtherCon network port @ 1Gbps with integrated switch
Link/Speed LED indication per Ethernet port
RGB Mode LED indication per Ethernet port
Color display and control jog for fast configuration
Contact closure as trigger • PoE powered (IEEE 802.3af)
Internal universal power supply with Neutrik PowerCon True1
Robust steel enclosure with 2 rack ears
