Luminex - LumiNode 4

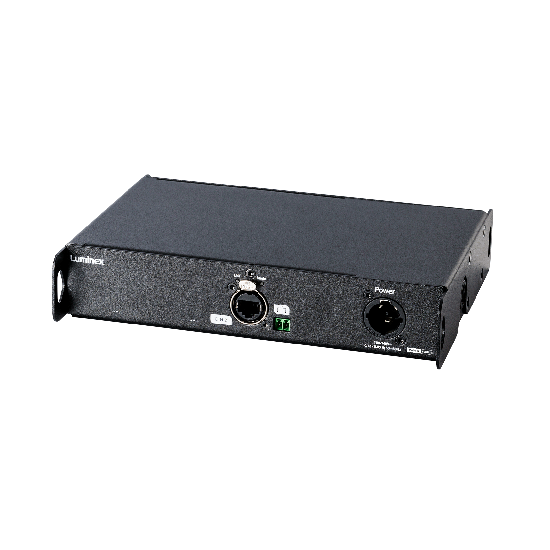

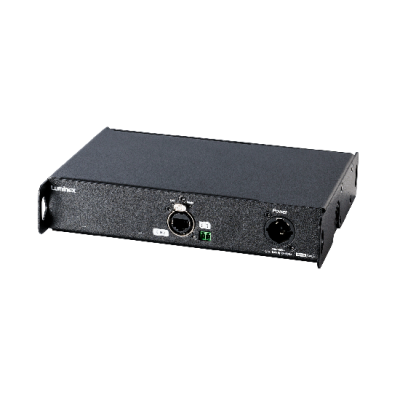

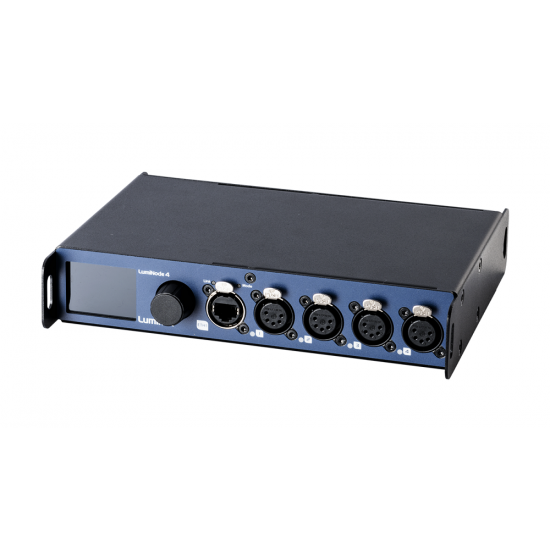

LumiNode 4 is specifically designed with an all metal, robust enclosure for rack mounting or truss mounting, making it an ideal solution for touring, theatre- and studio AV installs or for use at live performances.
Equipped with 2x 1Gb Ethercon ports and 4x 5-pin DMX ports LumiNode 4 offers flexibility in a half 19″ package. The M10 Insert and protection ears are specialy placed to mount the unit safely to any lighting structure.
Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.
Connectivity
DMX/RDM connectivity: 4x Neutrik 5 pin XLR (female) shielded & gold plated
Ethernet connectivity: 2x shielded Neutrik Ethercon connector
Contact closure: Yes
Power connectivity:1x Neutrik powerCON TRUE1
Ethernet (PoE 802.3af class 0)
DMX features
DMX protocols:DMX512 (1986 & 1990)
DMX512-A ANSI E1.11
RDM ANSI E1.20-2010
DMX port direction: Input or output (configurable)
DMX port isolation: Optical and galvanic isolation per port
DMX timing:Framerate: 10-40fps
Break: 176-352µs
Network features
Ethernet protocols:Art-Net™ (1-4)
sACN ANSI E1.31
RTTrPL (BlackTraX)
KiNET v1, v2
Ethernet port speed: 10/100/1000Mbps
Port sensing:Auto-negociation
MDI / MDIX
Split management interface: Yes
Groups (VLAN) support: Yes
Key features
Process engines: 6
Merging engine:HTP
LTP
Backup
Switch
X-Fade
Custom
Softpatch: Yes
Master/Limit:Proportional
Limit
Trigger system: Yes
ReRoute: Yes
Profile manager: Yes
Snapshot: Yes
DMX Redundancy: Yes
Monitoring software: LumiNet Monitor
Configuration:Built in Web server
Documented Web API
Front end display menu
Status
Display and jog: Yes
Status LEDs:Ethernet Port: link/activity LED and Group RGB LED
DMX Port: DMX/RDM LED
Power
Power input:100-240VAC (50-60Hz)
PoE IEEE 802.3af (Class 0)
Power consumption: Maximum 13W
Power redundancy: Yes
Environmental
Operating temperature: 0 tot +50°C
Storage temperature: -10 tot +70°C
Humidity (non condensing): 5 to 95% RH
Physical
Enclosure: Robust metal housing half 19 inch
Mounting:Rack
Truss
Dimensions (W x D x H): 220 x 175,3 x 44 mm
Weight: 1,42 kg
Packaging: 420 x 272 x 80 mm
Approvals
Electromagnetic emissions and immunity:EN55032 class A
EN55035
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
FCC Part 15 CFR 47 class A
ICES-003 Issue 6
Safety:IEC 62368-1
EN 62368-1
UL 62368-1
CAN/CSA-C22.2 No. 62368-1
CE
Certificates:cSGSus Mark
CE
CB certificate
Green:RoHS
REACH
