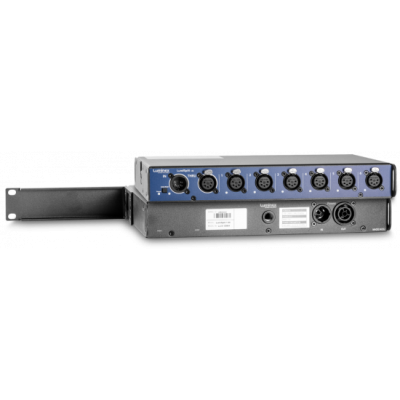

Luminex - LumiSplit 1.6 - DMX/RDM splitter
LumiSplit 1.6 is the smaller truss-mounted version of the LumiSplit 2.10. Armed with advanced RDM features, the 1.6 splitter will give you a whole new perspective on Remote Device Management. Because the new boosters are now visible and configurable from any RDM controller, they enable technicians to manage and configure their devices and fixtures like never before. And the RDM filter per port prevents lighting fixtures from being flooded by undesired RDM packets. Designed with a robust housing with galvanic and optical isolation per outlet, and Neutrik PowerCon True1 connector, LumiSplit is sure to become a favourite for touring and live events.
DMX/RDM Features:
DMX zone selection: No
HTP/LTP merger: No
DMX backup mode: No
Regeneration mode: Yes
RDM discoverable: Yes
RDM filtering: Yes (per input and output)
Extra Features:
DMX port isolation: Optical and galvanic isolation per port
Short circuit protection: Yes
DMX port termination/biasing: Yes
Dark mode: Yes
User presets: 2
Lockable front panel: Yes
Connectivity:
DMX input: 1x gold plated Neutrik 5 pin XLR (male - front)
DMX output:
6x gold plated Neutrik 5 pin XLR (female)
1x gold plated Neutrik 5 pin XLR (female - thru)
Power:
Power connectivity: 1x Neutrik powerCON TRUE1 In/Out
Power input: 100-240V AC; 16A; 50-60Hz
Power output: Maximum 15A
Power consumption: Maximum 15W
Fuse: Not user-serviceable fuse
Protocols:
Protocols: DMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
Configuration:
Power status indication: 1x RGB LED and LumiNet Monitor
Input status indication: 1x RGB LED and LumiNet Monitor
Output status indication: 6x RGB LED and LumiNet Monitor
Physical:
Mounting: Truss or rack (2x M10 insert) (optional wall-mount brackets)
Enclosure: Robust metal housing
Dimensions (W x D x H):
Truss mounted: 303 x 210 x 44 mm (12" x 8,3" x 1,73")
Rack mounted: 482 x 210 x 44 mm (19" x 8,3" x 1,73")
Weight:
Truss mounted: 2,38 kg
Rack mounted: 2,62 kg
Packaging: 530 x 330 x 80 mm (21" x 13" x 3,15")
Environmental:
Operating temperature: 0 to 50°C
Storage temperature: -10 to 70°C
Humidity (non condensing): 5 to 95%
Certificates/Approvals: cSGSus Mark, CE, CB certificate
Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024
