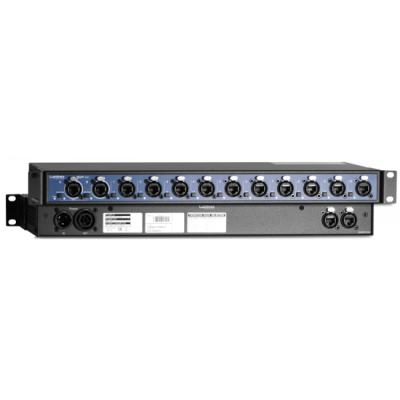

Luminex - LumiSplit 2.10 (Ethercon) - DMX/RDM splitter
SKU: 271020LU
Luminex - LumiSplit 2.10 (Ethercon) - DMX/RDM splitter
LumiSplit 2.10 is the result of ten years of experience with Remote Device Management. This rack-mounted 2.10 splitter covers all features of the LumiSplit family and will give you a whole new perspective on Remote Device Management. Because the new boosters are now visible and configurable from any RDM controller, they enable technicians to manage and configure their devices and fixtures like never before. And the RDM filter per zone (A/B) or per port prevents lighting fixtures from being flooded by undesired RDM packets. Designed with a RJ45 connectors, this LumiSplit Ethercon version is sure to become a favourite for fixed installations such as theaters, sports arenas, cruise ships, hotels ...
DMX/RDM Features:
DMX zone selection: Yes (per output)
HTP/LTP merger: Yes
DMX backup mode: Yes
Regeneration mode: Yes
RDM discoverable: Yes
RDM filtering: Yes (per input and output)
Extra Features:
DMX port isolation: Optical and galvanic isolation per port
Short circuit protection: Yes
DMX port termination/biasing: Yes
Dark mode: Yes
User presets: 2
Lockable front panel: Yes
Connectivity:
DMX input:
2x Shielded Neutrik Ethercon connectors (front)
2x Shielded Neutrik Ethercon connectors (rear/thru)
DMX output: 10x Shielded Neutrik Ethercon connectors
Power:
Power connectivity: 1x Neutrik powerCON TRUE1 In/Out
Power input: 100-240V AC; 16A; 50-60Hz
Power output: Maximum 15A
Power consumption: Maximum 15W
Fuse: Not user-serviceable fuse
Protocols:
Protocols: DMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
Configuration:
Power status indication: 1x RGB LED and LumiNet Monitor
Input status indication: 2x RGB LED and LumiNet Monitor
Output status indication: 10x RGB LED and LumiNet Monitor
Physical:
Mounting: Rack
Enclosure: Robust metal housing
Dimensions (W x D x H): 482 x 204,85 x 44 mm (19" x 8" x 1,73")
Weight: 2,54 kg
Packaging: 530 x 330 x 80 mm (21" x 13" x 3,15")
Environmental:
Operating temperature: 0 to 50°C
Storage temperature: -10 to 70°C
Humidity (non condensing): 5 to 95%
Certificates/Approvals: cSGSus Mark, CE, CB certificate
Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024
| Brand | Luminex |
|---|
