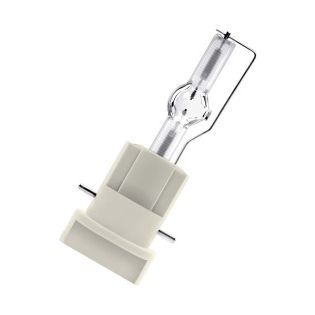

Osram - LOK-IT! 1000W/PS BRILLIANT VS1
SKU: OLOKIT
Osram - Lok-it 1000W/PS
For MAC Viper
Compact design and short arc gap allows for smaller and brighter fixures
Natural tone of light thanks to CRI as high as 90
Fast lamp replacement with one-touch rotate and lock base and socket design
Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
Consistent lumen output over the life of the lamp
Improved ceramic base allows high voltage up to 35kV
Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency
Power series offers enhanced performance features and versatility, including BRILLIANT lamps with high CRI and BLUElamps that offer 7500K for bright white light
Areas of application
Concert lighting
Club & Disco
Stage and theatre
Studio, TV and film
Architecture & Architainment
Electrical data
Nominal Wattage: 1000 W
Nominal Voltage: 82 V
Current (A): 12.2 A
Light technical data
Luminous Flux: 85000 lm
Light Center Length - LCL (mm): 56 mm
Color Temperature: 6000 K
Color Rendering Index: 95
Average Rated Life: 750 h
Physical attributes
Base: PGJX36
Bulb Shape: T
Length l1 max. (mm): 112 mm
Length l2 max. (mm): 104 mm
Diameter d (in): 0.827 in
Diameter d (mm): 21.00 mm
Distance a (mm): 56 mm
Electrode Gap - cold (mm): 5.5 mm
Additional product data
Operating Position: ANY
Maximum Base Temperature (ºC): 450 C
Cooling: FORCED
Forced Cooling: REQUIRED
Hot Restart: NO
Lamp Type: SINGLE-END
| Brand | Osram |
|---|
