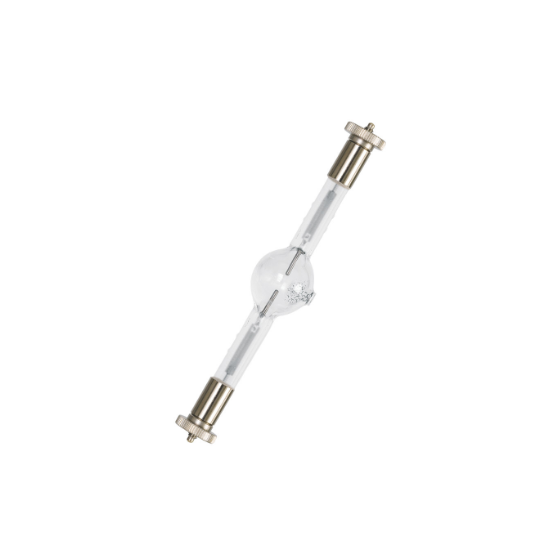

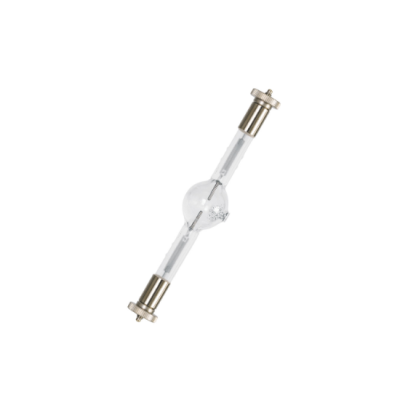

Osram - SHARXS HTI 1200W/D7/60 SFC10-4 VS1
SKU: OSH1200
Osram - SharXS HTI 1200W/D7/60
For MAC 2000
Product family features
High efficiency thanks to short-arc technology
High thermal load capacity thanks to eXtreme Seal (XS) technology - enables high pinch temperatures of up to 450 °C
Hot restart capability
Compact modular design - the same dimensions for all wattages within each SharXS family
Pre-focus base for accurate lamp installation
Areas of application
Concert and effect lighting
Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, SharXS lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
Electrical data
Nominal wattage: 1200.00 W
Nominal voltage: 95.0 V
Ignition voltage: 5.0 / 35 kVp
Nominal current: 12.7 A
Lamp current: 12.7 A
Photometrical data
Nominal luminous flux: 110000 lm
Luminance: 41000 cd/cm²
Color temperature: 6000 K
Color rendering index Ra: 90
Dimensions & weight
Diameter: 21.0 mm
Length: 136.0 mm
Light center length (LCL): 57.5 mm
Temperatures & operating conditions
Maximum permitted pinch temperature: 450 °C
Lifespan
Lifespan: 750 h
Additional product data
Base (standard designation): SFc10-4
| Brand | Osram |
|---|
