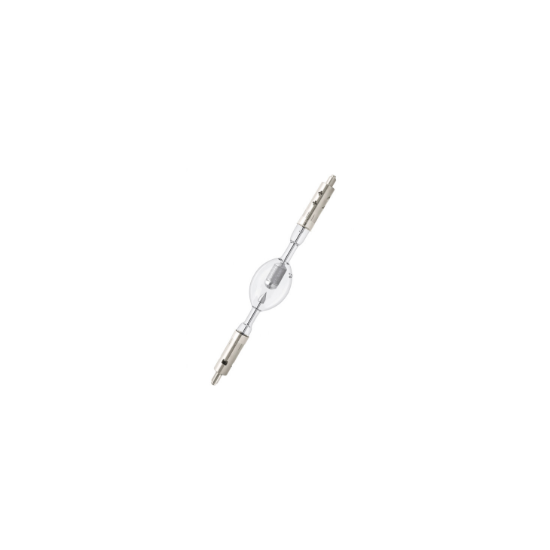

Osram - XBO6000W DTP Ozone-free Beamer lamp
Osram - XBO6000W DTP Ozone-free Beamer lamp

Osram - XBO6000W DTP Ozone-free Beamer lamp

SKU: OSXBO6000

Osram - XBO - 6000W/DTP
Product family features

Short arc with highest luminance for brighter screen illumination
A lifetime of reliable performances with constant 6000 K color temperature
Easy to maintain
High level of arc stability
Hot restart and instant light on screen
Dimmable in a wide range
Areas of application

Cinema projection
Safety advice
Because of their high luminance, UV radiation and internal pressure in both the hot and cold state, XBO lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Xenon lamps are highly explosive. When hot, xenon lamps can cause burn marks. They should only be handled when the lamp is at room temperature. Always use the protective jackets supplied when handling these lamps. When packing the lamps and when installing or removing the lamps without their protective jackets, always wear protective clothing (face shield with neck protector, protective jacket and lint-free, cut-resistant gloves). For more information see the relevant in-pack leaflets and operating instructions.

Electrical data
Nominal current: 162 A
Nominal wattage: 6000.00 W
Current control range: 130…175 A
Nominal voltage: 37.0 V

Dimensions & weight

Diameter: 78.0 mm
Length: 426.0 mm
Length with base excl. base pins/connection: 383.00 mm
Light center length (LCL): 165.0 mm
Cable/wire length, input side: -
Product weight: 960.00 g
Electrode gap cold: 8.0 mm
Temperatures & operating conditions

Max. permitted ambient temp. pinch point: 230 °C
Lifespan

Lifespan: 1000 h
Service Warranty Lifetime: 1200 h
Additional product data

Base anode (standard designation): SFa30-14
Base cathode (standard designation): SFc30-14
Capabilities

Cooling: Forced
Burning position: s15/p15

Brand Osram
