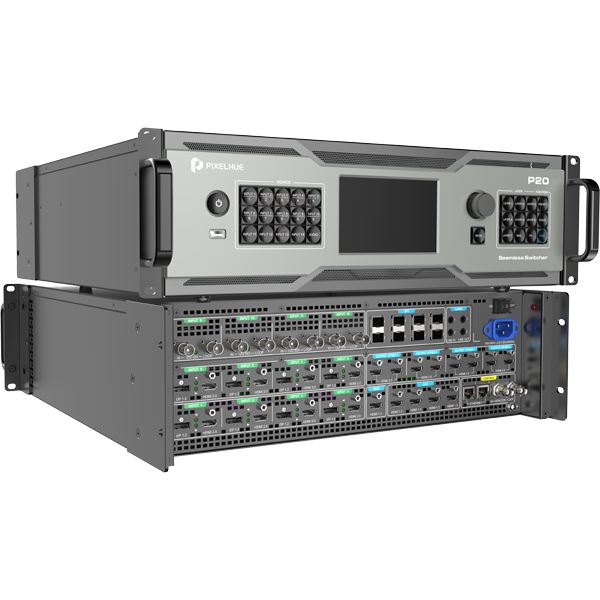

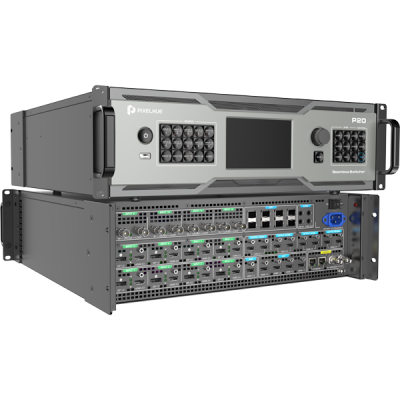

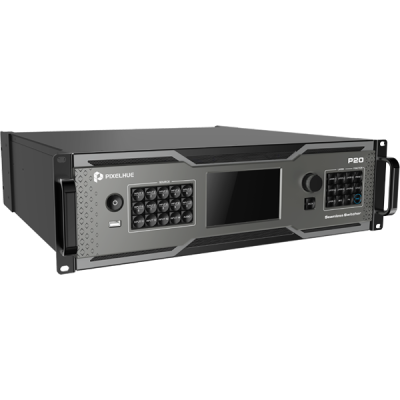

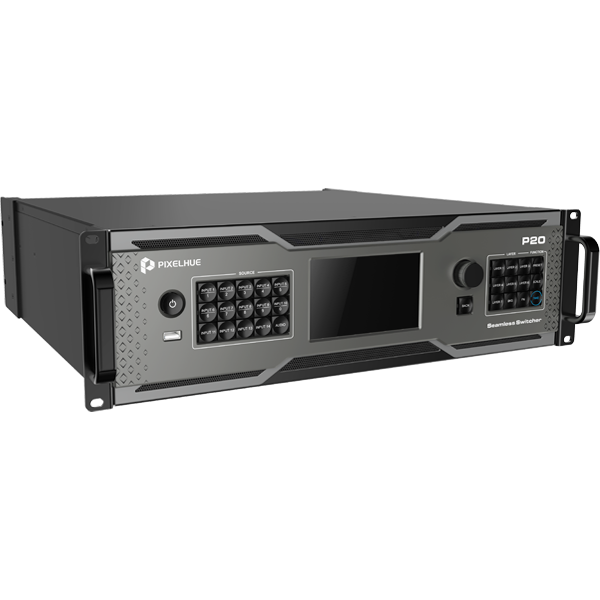

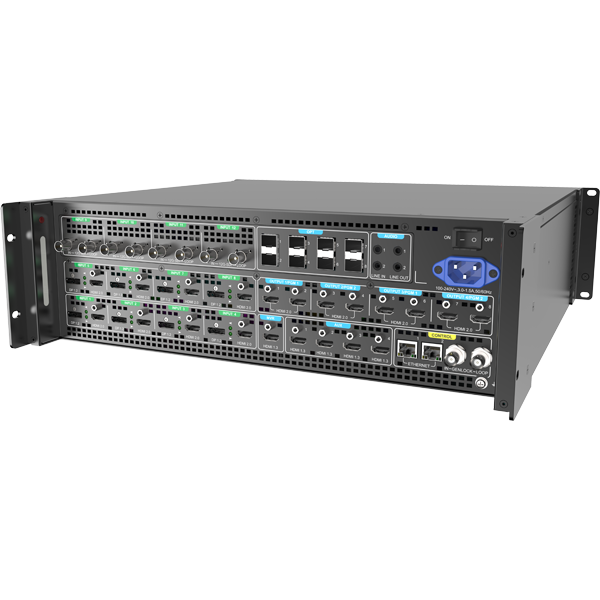

Pixelhue - P20
SKU: POIXE0P20
Pixelhue - P20
Flightcase included.
Powerful Functionalities
The P20 and P10 employ FPGA-based highperformance image enhancement architecture and real 4K60p 4:4:4 10-bit internal video processing. With dual working modes, versatile 4K connectivity, high-quality video processing, multi-screen configuration and control, flawless image mosaic, LCD bezel compensation, multi-projector edge blending and much more, the P20 and P10 are perfect fits for small/medium-sized live events and many fixed installations requiring high reliability, unrivaled ease of use, optimal image quality and cutting-edge live 4K processing features. Seamless transitions, smooth video display and various visual effects maximize audience engagement.
Dual working modes make the P20 and P10 more capable, allowing users to choose the switcher mode or PGM only mode as needed. Multi-screen configuration and control can meet more applications. The P20 supports up to 12x DL layers or 6x 4K layers and the P10 supports up to 6x DL layers or 3x 4K layers. Layer layout is customizable and a variety of layer effects such as DSK, mask, crop, flip, cut & fill, border and shadow are supported. Up to 128 presets can be saved to satisfy different requirements. High-resolution images can be captured from live inputs and outputs and used as BKG. In addition, the P20 allows for free conversion between SDR, HDR10 and HLG.
Longer Transmission Distance
10G optical fiber ports are provided for copying HDMI 2.0 output, allowing the P20 and P10 to transmit signals to the VX1000 or VX600 LED controller from NovaStar over a long distance (up to 10 km with SMF) without fiber converters. This method not only ensures the signal stability but also lowers the transmission cost, making the P20 and P10 ideal for long-distance signal transmission.
Flexible Control Options
In addition to superior performances and outstanding visual experience, the P20 and P10 are exceptionally easy to operate. Various control options are available.

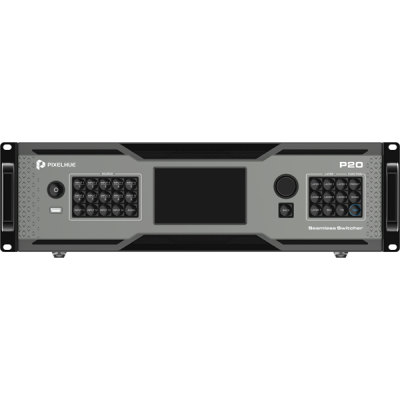

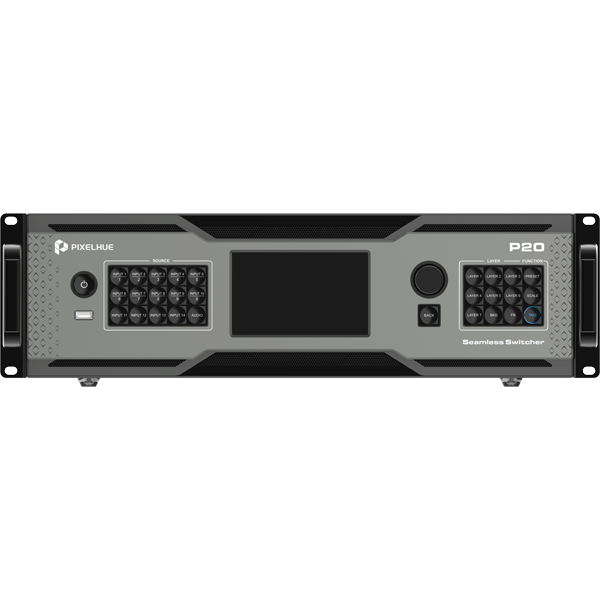

Full-featured front panel buttons and 5-inch graphical LCD
Versatile event controller U5/U5 Pro
All-new event management software PixelFlow
Superb Stability & Reliability
The P20 and P10 are created for applications requiring the highest stability and uptime. Different backup methods are supported, including input source backup, automatic output backup and device backup. Once the primary input source is not stable or disappears, it will be switched to the backup source seamlessly. When the primary device fails, the backup device will take over the work immediately to ensure uninterrupted operation. Seamless switching from the primary to backup device or connector with no downtime makes the products highly reliable and worry-free. What's more, the products have passed a series of rigorous drop tests, shock & vibration tests and thermal tests, ensuring the products can survive in any kind of road trip or event environment.
Features:
Switching between switcher mode and PGM only mode
Versatile 4K connectivity: HDMI 2.0, DP1.2 and 12G-SDI
10G optical fiber ports for copying output and long-distance signal transmission
Up to 2x 4K×2K@60Hz outputs in switcher mode and output resolution per P20 in PGM only mode up to 8K×4K@60Hz

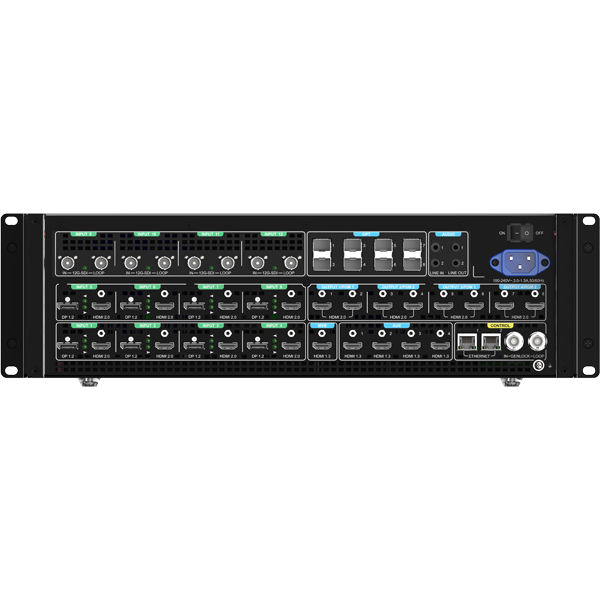

Inputs
For an input that contains a DP 1.2 and HDMI 2.0, only one connector
can be used as the input source at the same time.
DP 1.2
Maximum resolution: 4096×2160@60Hz/8192×1080@60Hz
Minimum resolution: 800×600@60Hz
Maximum width: 8192 pixels (8192×1080@60Hz)
Maximum height: 8192 pixels (1080×8192@60Hz)
Maximum frame rate: 120 Hz
EDID management (support for standard resolutions and
custom resolutions)
HDCP 1.3 compliant
HDMI 2.0Maximum resolution: 4096×2160@60Hz/8192×1080@60Hz
Minimum resolution: 800×600@60Hz
Maximum width: 8192 pixels (8192×1080@60Hz)
Maximum height: 8192 pixels (1080×8192@60Hz)
Maximum frame rate: 120 Hz
Support for HDR (P20)
EDID management (support for standard resolutions and
custom resolutions)
HDCP 2.2 compliant and downward compatible
12GSDISupport for ST2082 (12G), ST2081 (6G), ST424 (3G), ST292 (HD)
Maximum resolution: 4096×2160@60Hz
Maximum frame rate: 60 Hz
Support for interlaced input signal
Outputs
HDMI 2.0Maximum resolution: 4096×2160@60Hz/8192×1080@60Hz
Minimum resolution: 800×600@60Hz
Maximum width: 8192 pixels (8192×1080@60Hz)
Maximum height: 8192 pixels (1080×8192@60Hz)
Maximum frame rate: 120 Hz
Support for HDR (P20)
EDID management (support for standard resolutions and
custom resolutions)
HDCP 2.2 compliant and downward compatible
HDMI 1.3Maximum resolution: 1920×1080@60Hz/2048×1080@60Hz
Minimum resolution: 800×600@60Hz
Maximum width: 2048 pixels (2048×1080@60Hz)
Maximum height: 2048 pixels (1080×2048@60Hz)
Maximum frame rate: 120 Hz
EDID management (support for standard resolutions up to
2048×1152@60Hz and custom resolutions)
HDCP 1.4 compliant and downward compatible
OPT
10G optical fiber ports for copying HDMI outputs
Transmission distance with SMF up to 10 km
Multiviewer
One dedicated HDMI 1.3 connector
Connect to the Multiviewer display, allowing for live view of all the inputs and outputs
from one display.
The output resolution is fixed at 1920×1080@60Hz.
AUX
HDMI 1.3 connectors
Connect to auxiliary devices such as teleprompters.
Default output resolution: 1920×1080@60Hz
Ethernet
2x Gigabit Ethernet ports used for control and input view
One works as primary and the other as backup.
Two Ethernet ports share the same IP address.
Genlock
Genlock synchronization signal connector
GENLOCK IN: Synchronization signal input
GENLOCK LOOP: Synchronization signal loop output
Transition & Effects
Seamless transition from PVW to PGM via Take, Cut or Tbar operation
Fade in/out supported
Customizable transition durations (0.1s to 10s)
Two options for transition between PVW and PGM: Copy and Swap
Layers
P20: 2x MAIN DL layers (or 1x MAIN 4K layer) and 10x PIP DL layers (or 5x PIP 4K layers)
P10: 2x MAIN DL layers (or 1x MAIN 4K layer) and 4x PIP DL layers (or 2x PIP 4K layers)
Custom layer layout
Layer effects: DSK, mask, crop, flip, cut & fill, border (MAIN), shadow (MAIN), and more
BKG & Logo
Up to 255 BKGs & LOGOs (Maximum storage space: 512 MB)
BKG can be either a captured or imported image.
High-resolution images can be captured from live inputs and outputs and used as BKG.
Control Options
Front panel buttons and 5inch graphical LCD
Event controller U5/U5 Pro
Event management software PixelFlow
Thirdparty control system Stream Deck
PixelFlow Software Functionalities
Longterm stable running
Upgraded and visualized UI, adaptive to U5/U5 Pro/PC screens
One click to change skins of U5/U5 Pro buttons
Software parameter controllable by U5/U5 Pro encoders or faders
Distinct function areas and hover menu for ease of use
Fully functional simulator for offline configuration and practice
Processing Capability
FPGAbased highperformance image enhancement architecture
Ultralow latency, as low as 1 frame in proper configuration
BT.601, BT.709, BT.2020, DCIP3 color space processing support
Free conversion between SDR, HDR10 and HLG (P20 only)
Advanced DSK capability: chroma key and luma key
Compatible with HDCP 1.4 and HDCP 2.2
| Brand | Pixelhue |
|---|
