Pixelhue - X400 Main Frame

Pixelhue - X400 Main Frame
Product available in single and double GPU configurations, contact us or request a quote for more information.

Optional flightcase available.

Superior Performance

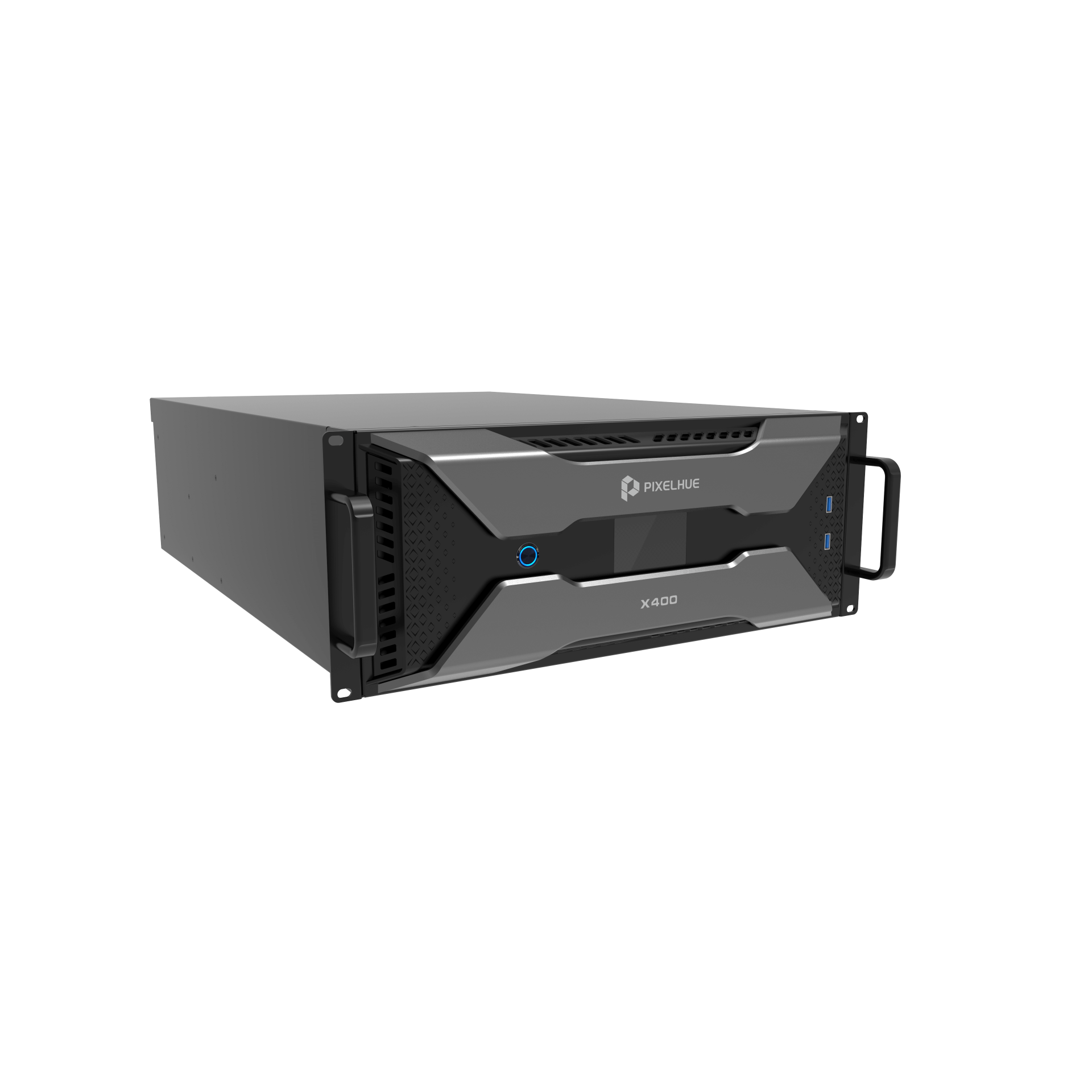

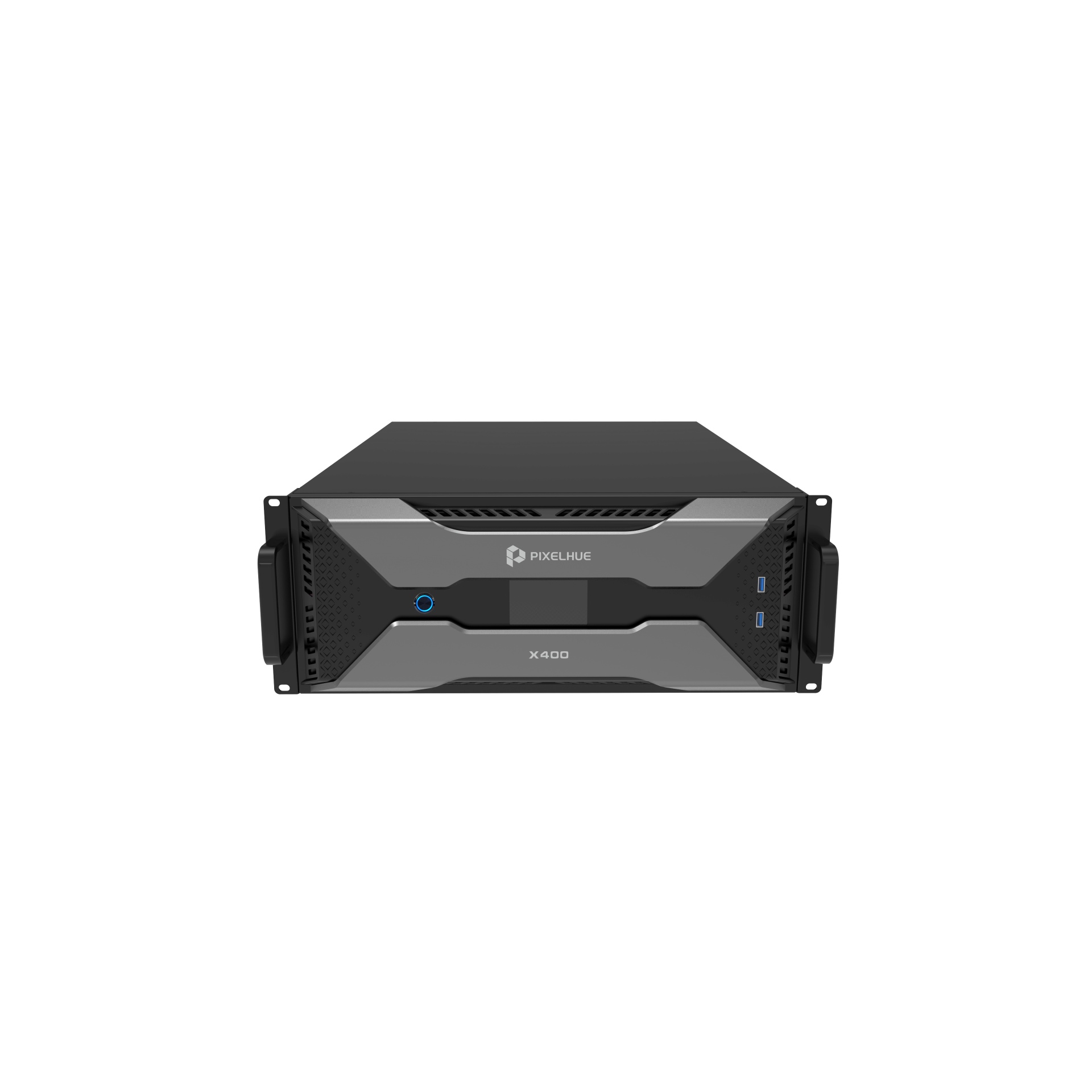

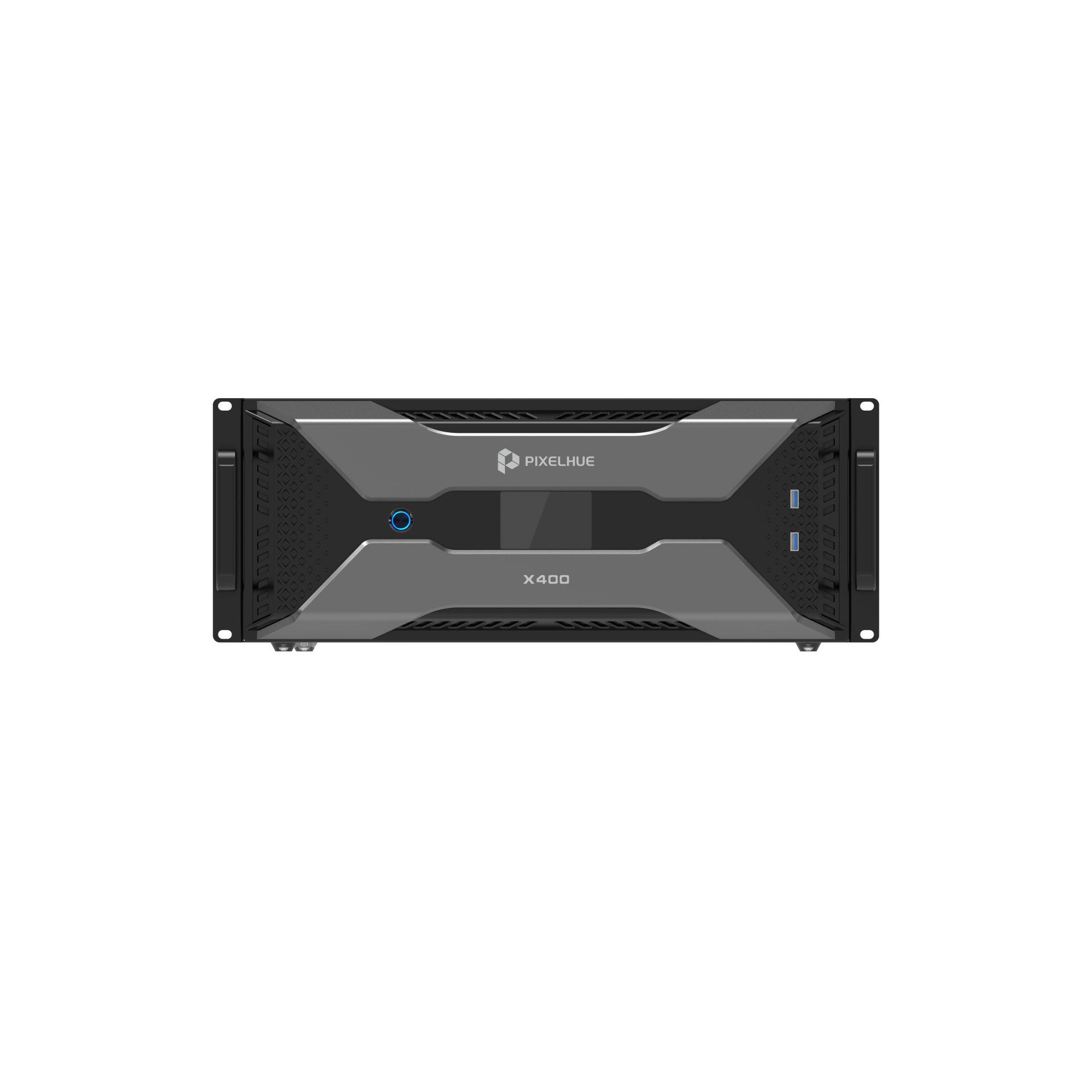

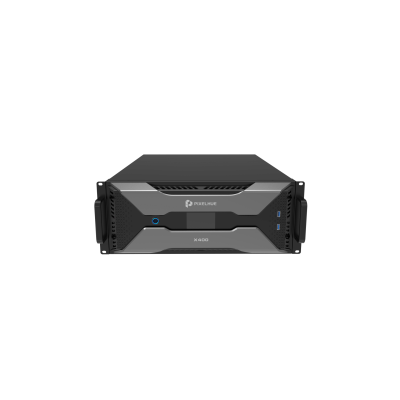

The X400 is a brand-new professional media server engineered by PIXELHUE. Equipped with Intel’s latest-generation processor, high-performance server class motherboard and graphics card, multiple input and output cards, the X400 can drive up to 6x 4K or 24x 2K mosaic outputs from a single server unit, thus delivering unprecedented high performance to your various large-scale events today. Built on the advanced graphics card to offer remarkable hardware -decoding and rendering capabilities, the X400 easily realizes the hardware-decoding of 8K@60fps UHD videos and simultaneous smooth playback of multiple 4K@60fps videos. With the support for abundant video decoding formats, the X400 media server becomes the unparalleled video playback and processing solution for stage performances, large-scale conferences, immersive exhibitions and more creative display applications.

Excellent Flexibility Through Modular Design

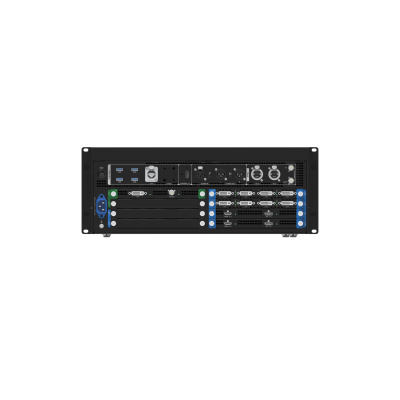

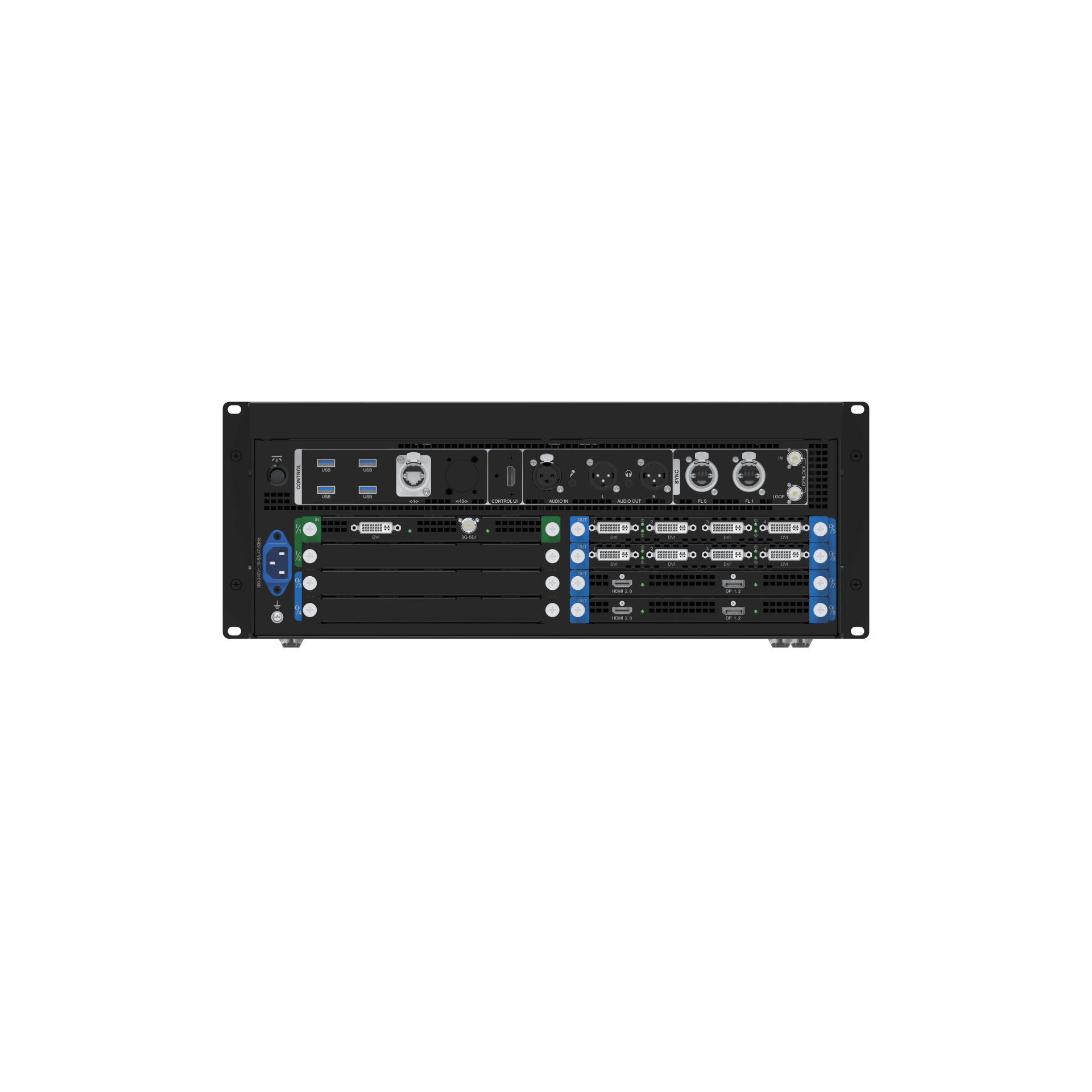

The X400 is designed with 2 input card slots and 6 output card slots and can support up to 2x 4K input cards and 4x 4K output cards simultaneously, allowing you to easily select the desired I/O modules with various input and output connectors to satisfy your visual system requirements. The modular and plug-in design also facilitates easy deployment and upgrade in the fifield, bringing more convenience and ease to your site applications.

Stable and Reliable Control
Employing dual high-speed SSD with dual OS, dual authorization mechanism and modular design, the X400 is undoubtedly the most robust and heavy-duty solution for mission-critical applications. Moreover, onsite playback and control are always stable thanks to dual redundant configuration and seamless switching guaranteed by the frame sync technology. Extra alarm and diagnostics functionalities further help to safeguard your live events.

PilotMS3 Unleash All Your Creativity
The X400 media server has a built-in multimedia playback software Pilot MS3, which is ideal for you to achieve your abundant creative ideas. Innovative irregular-shaped slices, ultra-wide videos and flawless pixel-to-pixel display make a variety of dazzling visual effects possible during spectacles or live events and let you fully unleash your wonderful ideas. Unlimited layers and programs, program jump and media collection playback, customized cross program playback, image quality adjustment, crossfade effect and more powerful features help you easily and flexibly manage and control your event display.

UI Customized by Your Preference
Magnifificent visualized design makes your operations convenient and the GUI can be customized by your preference. The media, inputs, layers, slices, realtime output preview and playback progress are all intuitive. You can see what the output will look like while the program is being edited. All our design considerations focus on shortening your learning curve and bringing you the maximum ease of use.

Features:

Playback and real-time editing of all categories of media, including videos, pictures, audio, web pages, acquisition devices and NDI inputs
Various playback modes, including single program, single media, media collection, cross-program media and jump playback
Unlimited layers and unlimited programs
Irregular-shaped slices for diversified visual applications
Visualized management of slices, programs, playback and input sources
