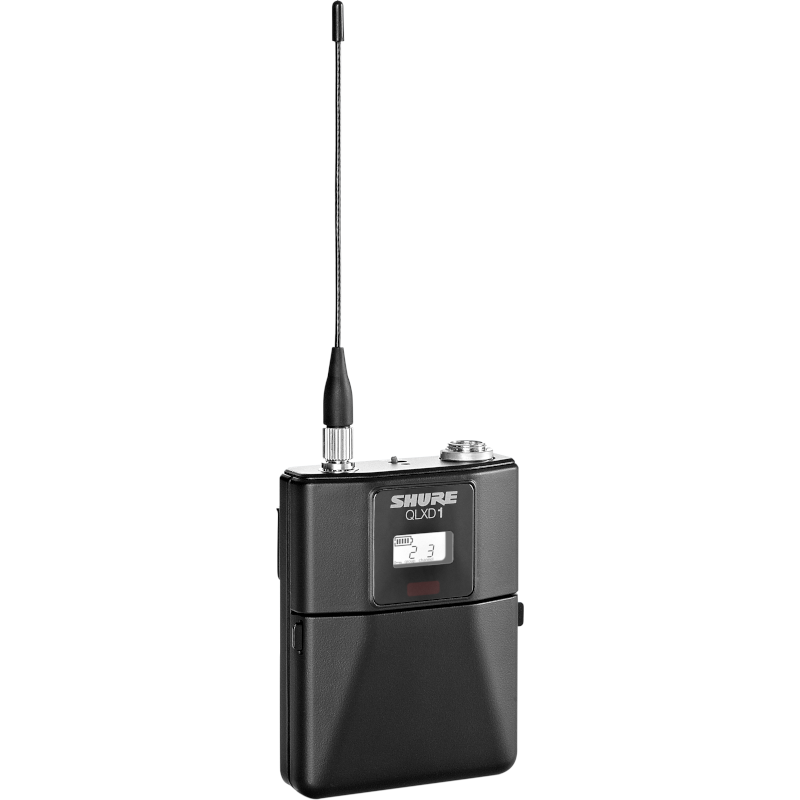

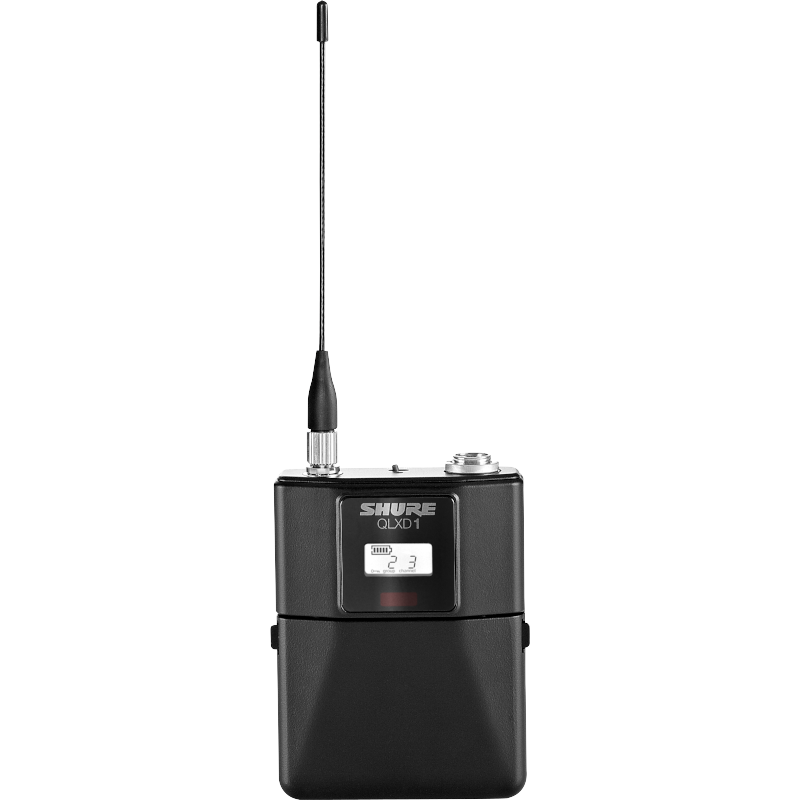

Shure - QLXD1 - G51 (470-534 MHz)
SKU: 37QLXD1G
Shure - QLXD1
Featuring transparent 24 bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
Over 120 dB of dynamic range - no transmitter gain adjustments needed
AES 256-bit encryption for secure transmission
Up to 9 hours continuous use with 2 x AA alkaline batteries
Optional Shure lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
External charging contacts for docked charging
Backlit LCD with easy to navigate menu and controls
Selectable display mode showing group/channel, frequency, or battery runtime
100 meter (300 feet) line-of-sight operating range
4-Pin male mini connector (TA4M)
Rugged metal construction
Detachable ¼ wave antenna
Frequency and power lockout
Product series: QLX-D
Usage Environments: Theater Stage
Optional Accessories: SBC200
Battery Life Lithium: 10 h (up to)
Battery Life Alkaline: 9 h (up to)
Audio Mute: no
Detachable Antennas: yes
Switchable RF Power: yes
Frequency Diversity: no
High Density Mode: no
Form Factor: Bodypack
Charger Options: Docking Charger
Operating Range: n/a
Battery Life Note: NOTE: Frequency band and power output dependent
Battery Status: Leveled battery life indication
Encryption: yes, AES-256
Transmission: Digital in VHF, UHF, 900MHz ISM, 1.5GHz, 1.8GHz
Weight: 138 g
Width: 65 mm
Height: 86 mm
Depth: 23 mm
Component: wireless_transmitter
Color: black
Logic output: false
Frequency band: G51 (470-534mhz), H51 (534-598 MHz) or K51 (606-670 MHz)
On/Off switch: true
Mute switch: false
Status indicator: LED
Connector: TQG (TA4F, 4-Pin Mini)
| Brand | Shure |
|---|
