SKU: 37ULXD4

Shure - ULXD4
Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.

Digital Predictive Switching Diversity
Up to 72 MHz tuning range (region dependent)
Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control
Compatible with AMX and Crestron control systems
Interference detection and alerts

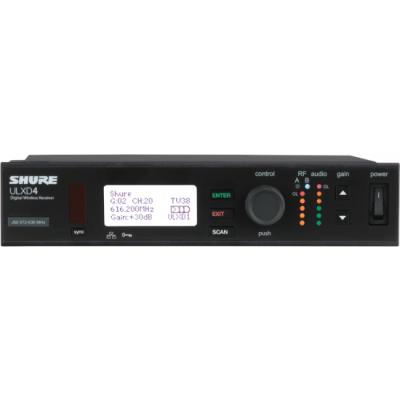

Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
Removable half wave antennas
24 bit / 48 kHz digital audio
20 Hz – 20 kHz frequency range with flat response
Greater than 120 dB dynamic range
Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one  8 MHz TV channel
AES-256 bit encryption equipped for secure wireless transmission

Product Series: ULX-D
Usage Environments: Theater Stage
Optional Accessories: PS43
Bias Via BNC: Yes
Dante Audio Network Interface: No
Network Ability: DHCP, Link-Local, Static
Antenna Cascade: No
Line Mic Switch: Yes
Image Rejection: 70
Phantom Power Protection: Yes
Media Control System Connection: No
Receiver Types: Single
Weight: 913 g
Width: 197 mm
Height: 42 mm
Depth: 171 mm
Component: Wireless Receiver
Color: Black
Logic Output: False
Frequency Band: G51 (470-534 MHz), K51 (606-670MHz) or H51 (534-598MHz)
Included Power Supply: EU
On/Off Switch: True
Mute Switch: False
Status Indicator: LED
Connector: 3-Pin XLR

Brand Shure
